Innovative Rapid Freezing of Durian Pulp Using Liquid Nitrogen Cabinet Freezers

Innovative Rapid Freezing of Durian Pulp Using Liquid Nitrogen Cabinet Freezers

Nov 30, 2023



Renowned as the "king of fruits," durian's delectable pulp is a treasure to the desert tooth, yet preserving its unique taste and texture has long been a challenge. Traditional freezing methods often fall short, leading to concerns such as long freezing time and flavor degradation. In this exploration, we delve into the transformative world of industrial liquid nitrogen freezers, unveiling how they redefine the rapid freezing process for durian pulp, elevating preservation experiences to new heights.

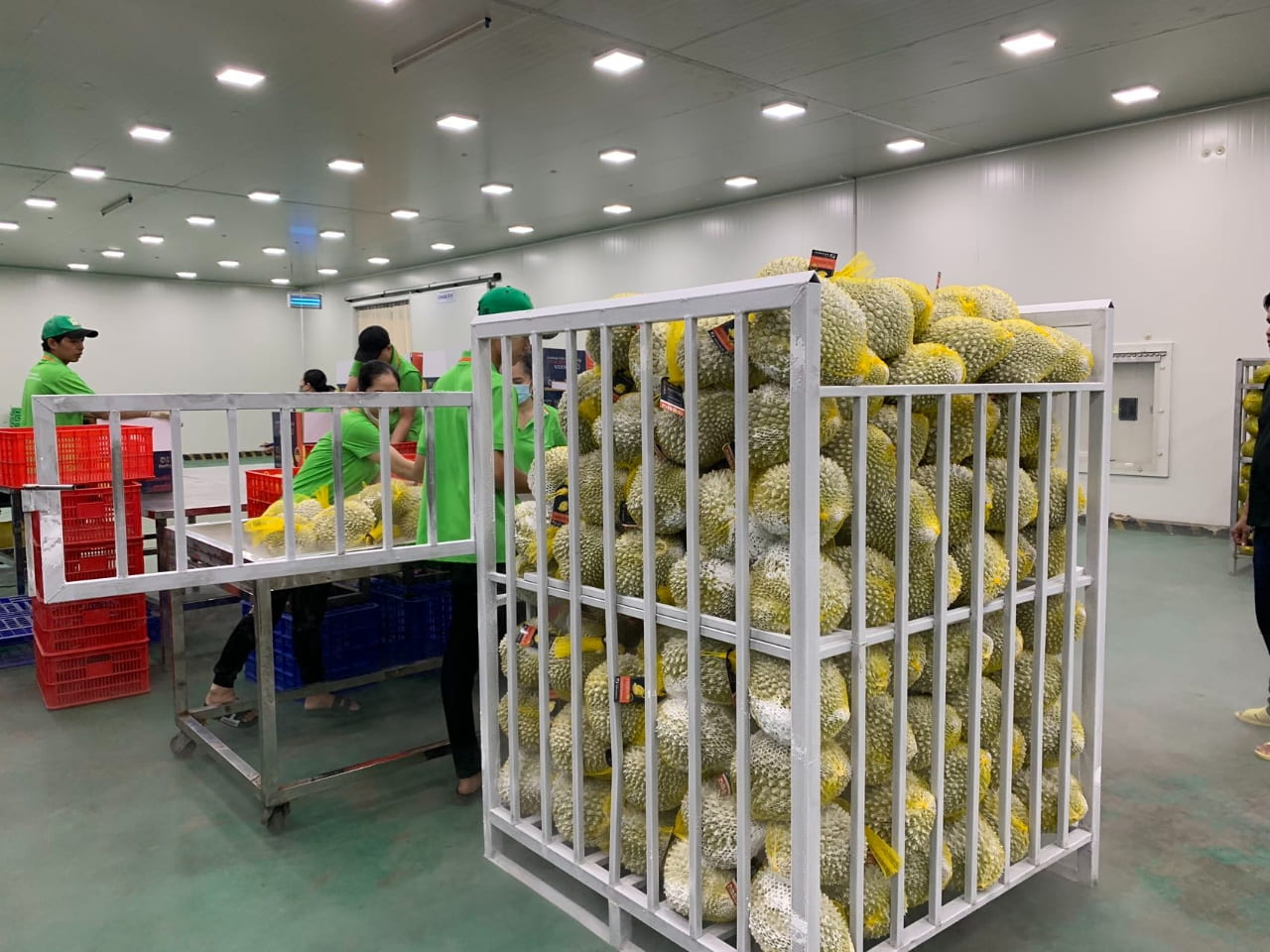

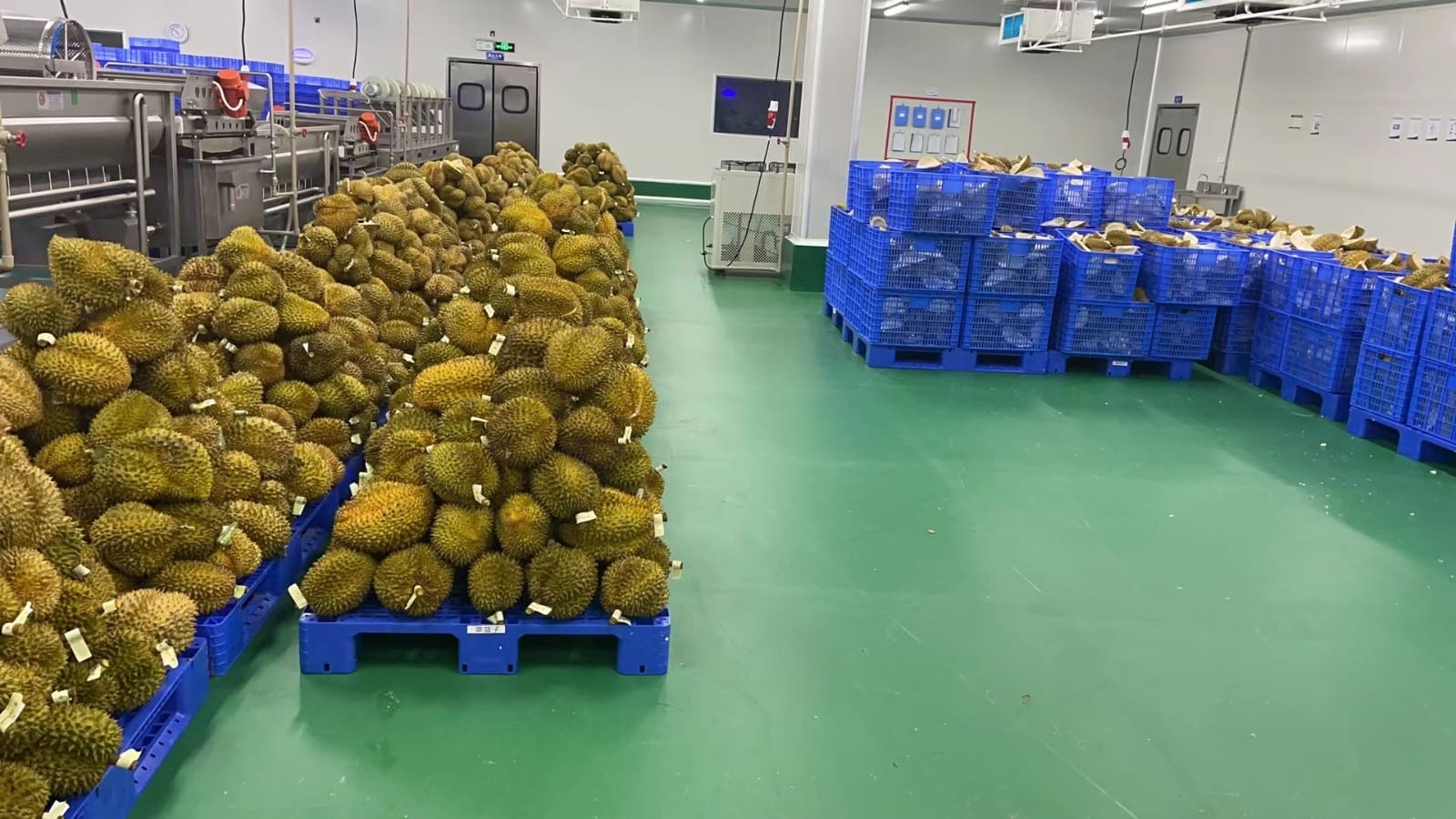

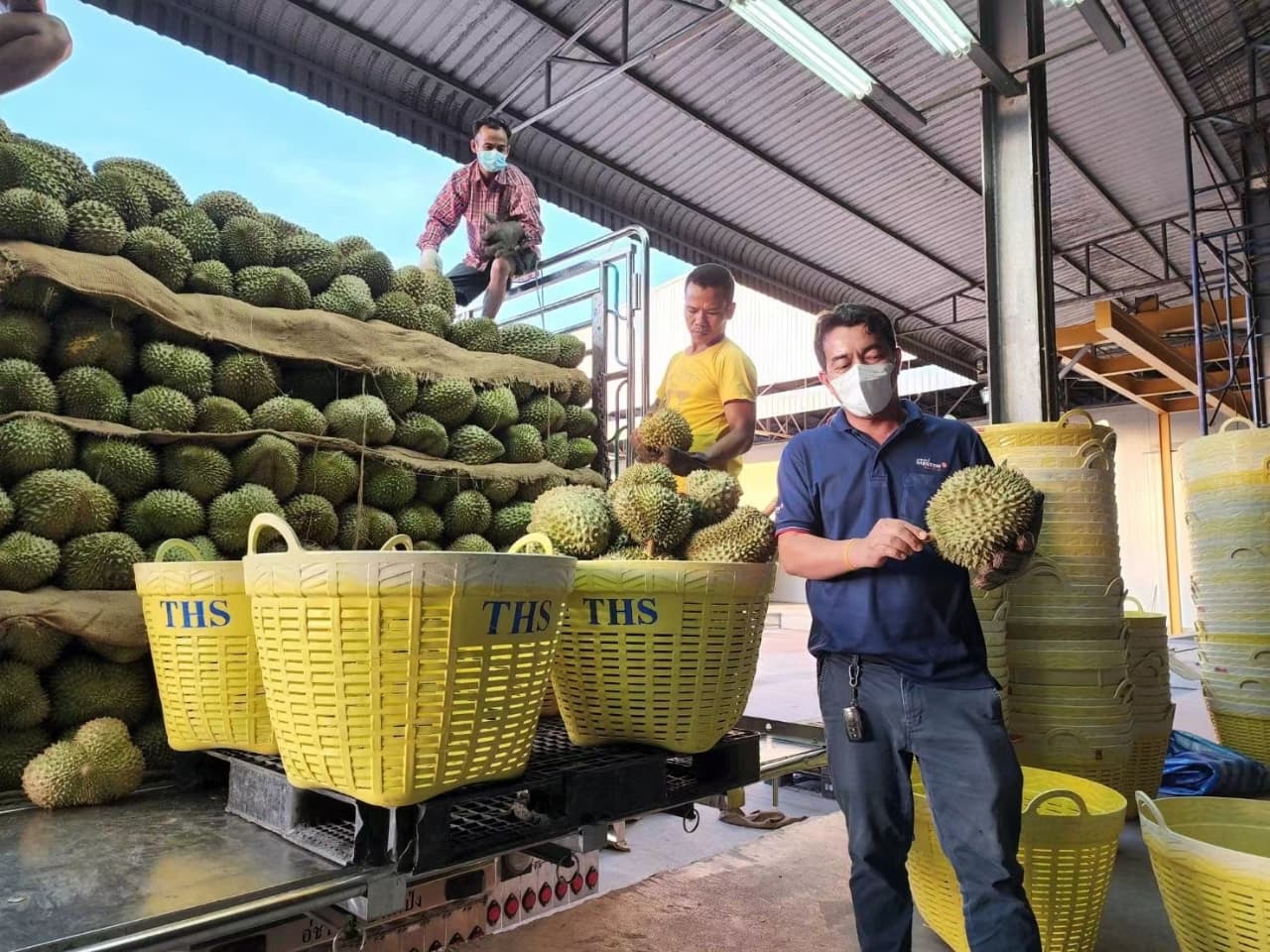

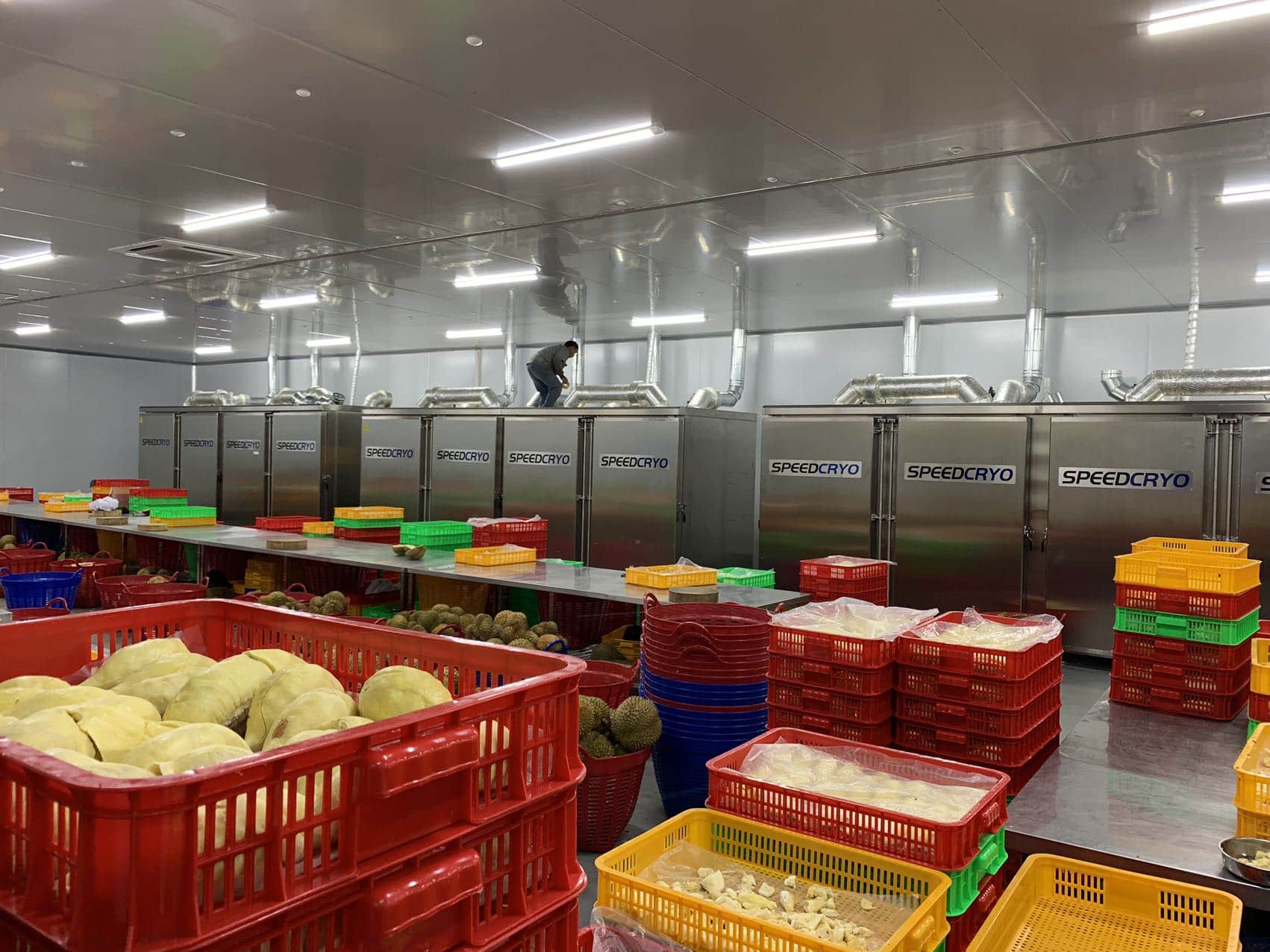

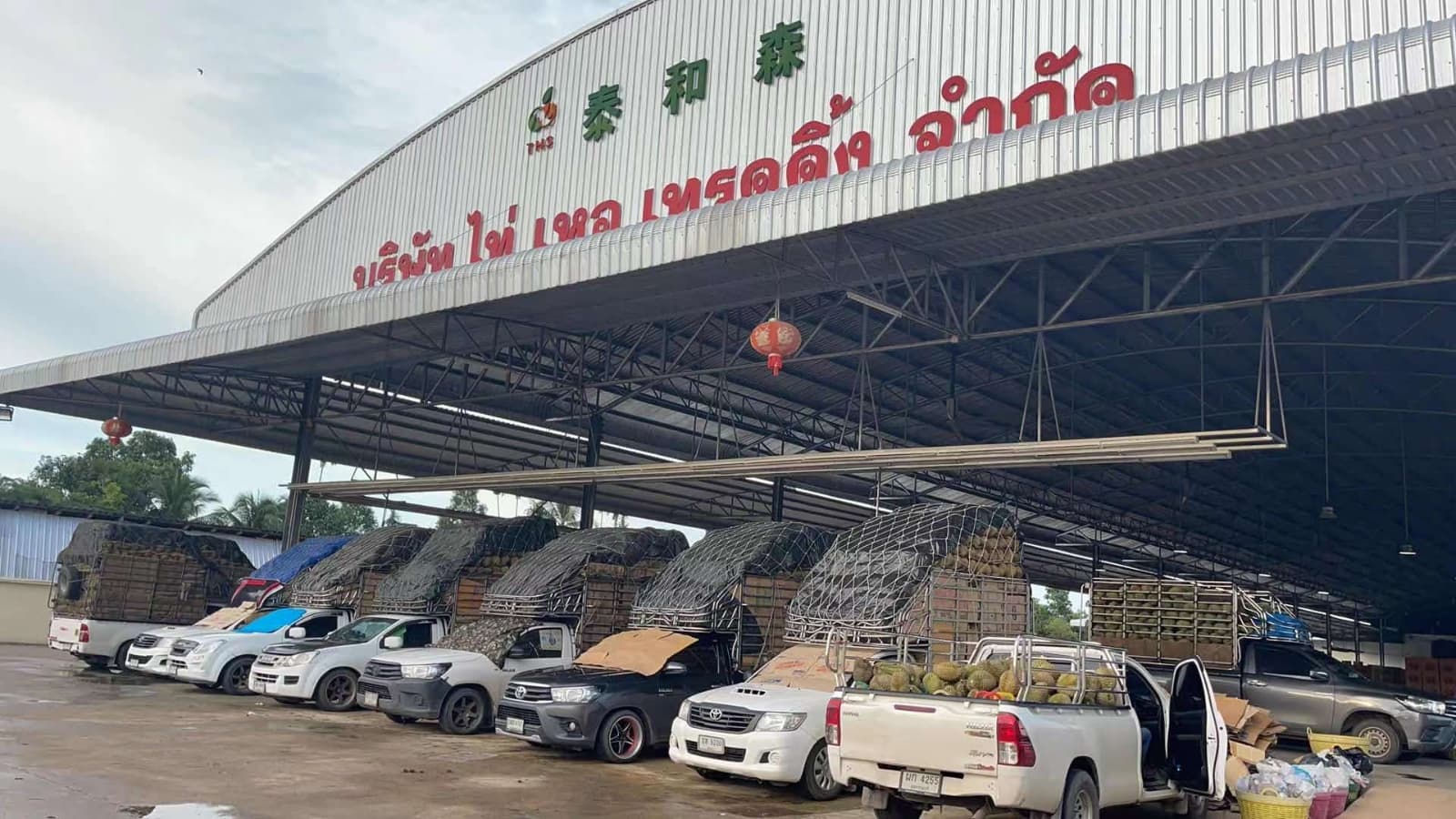

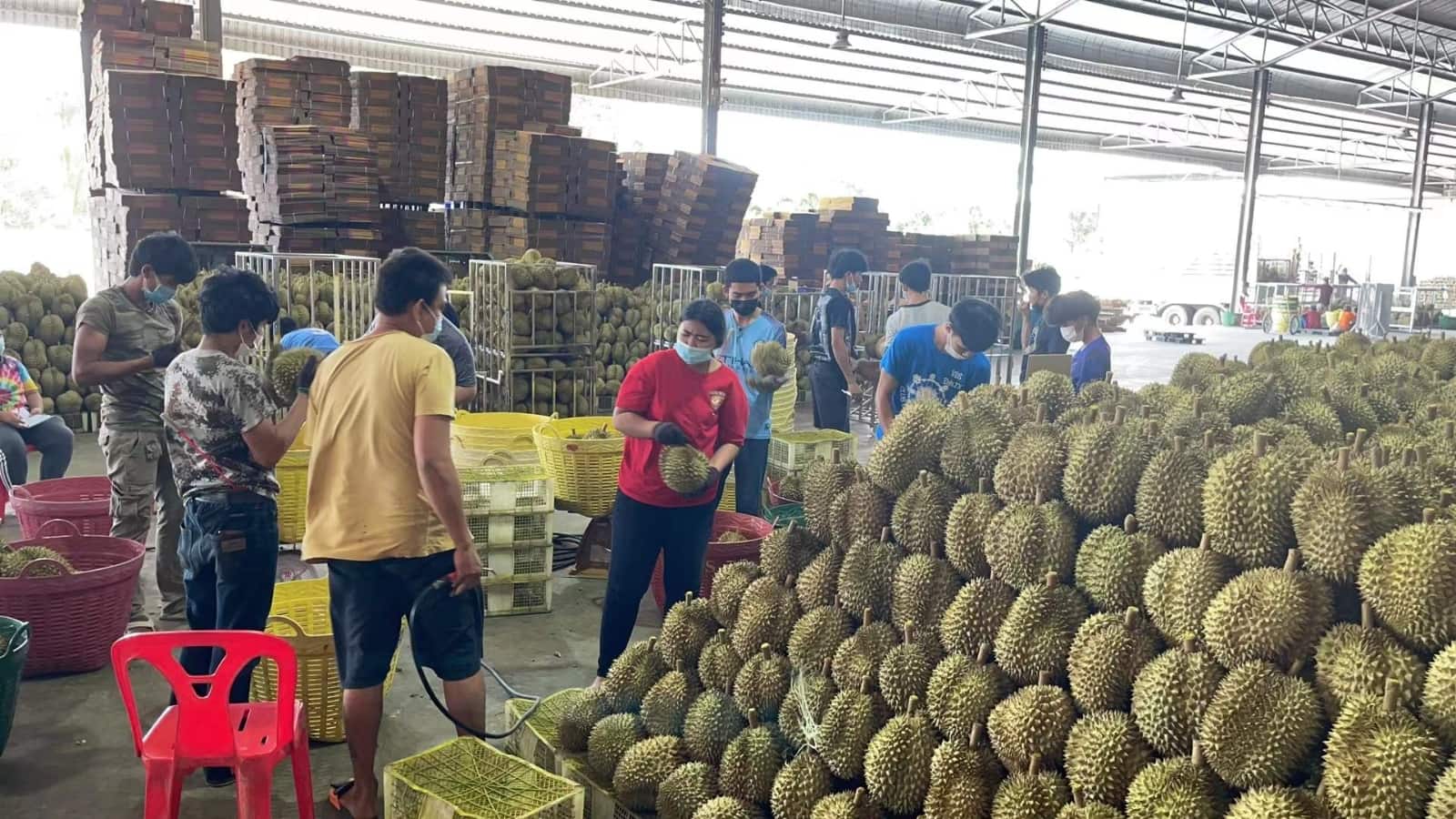

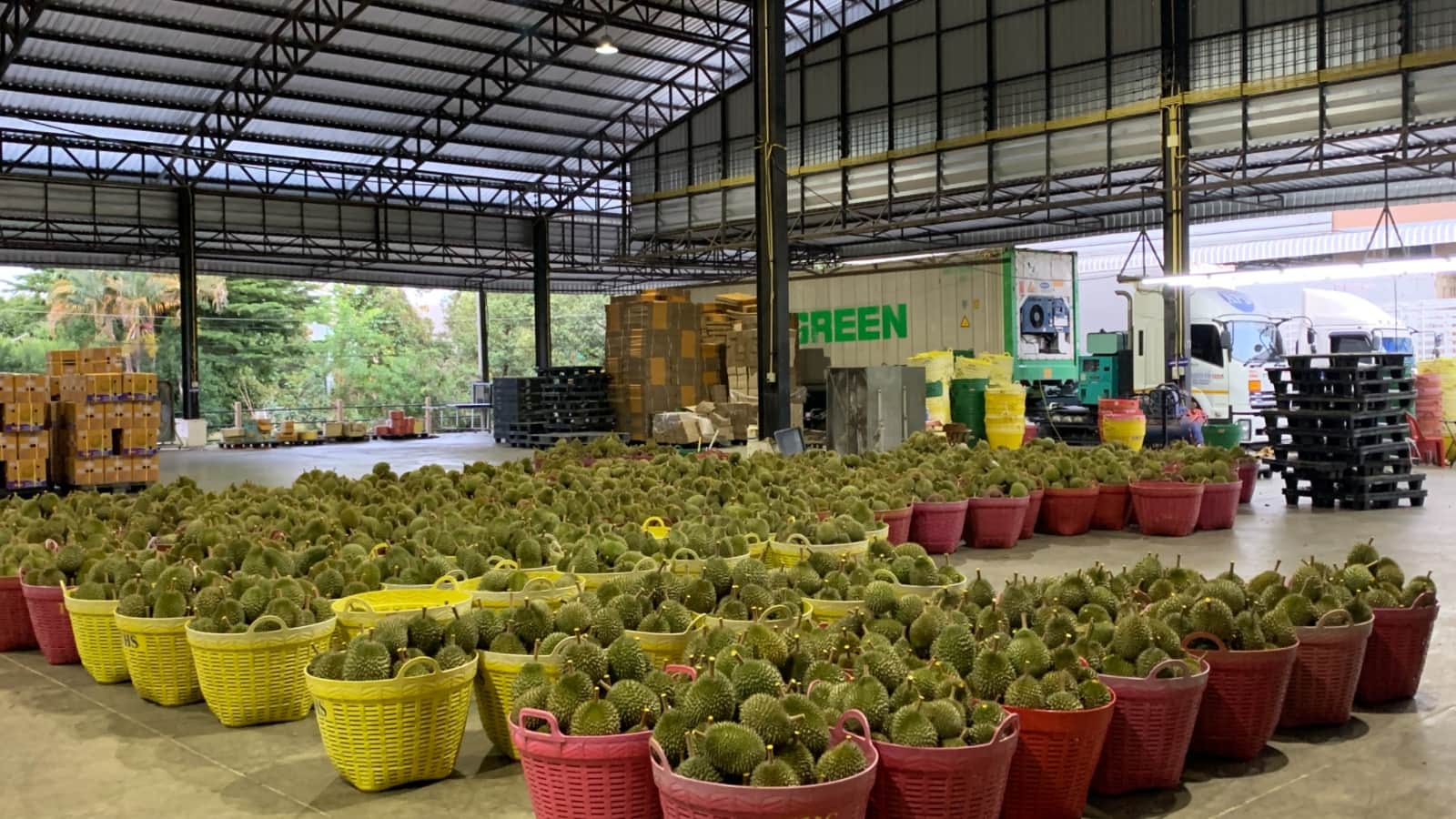

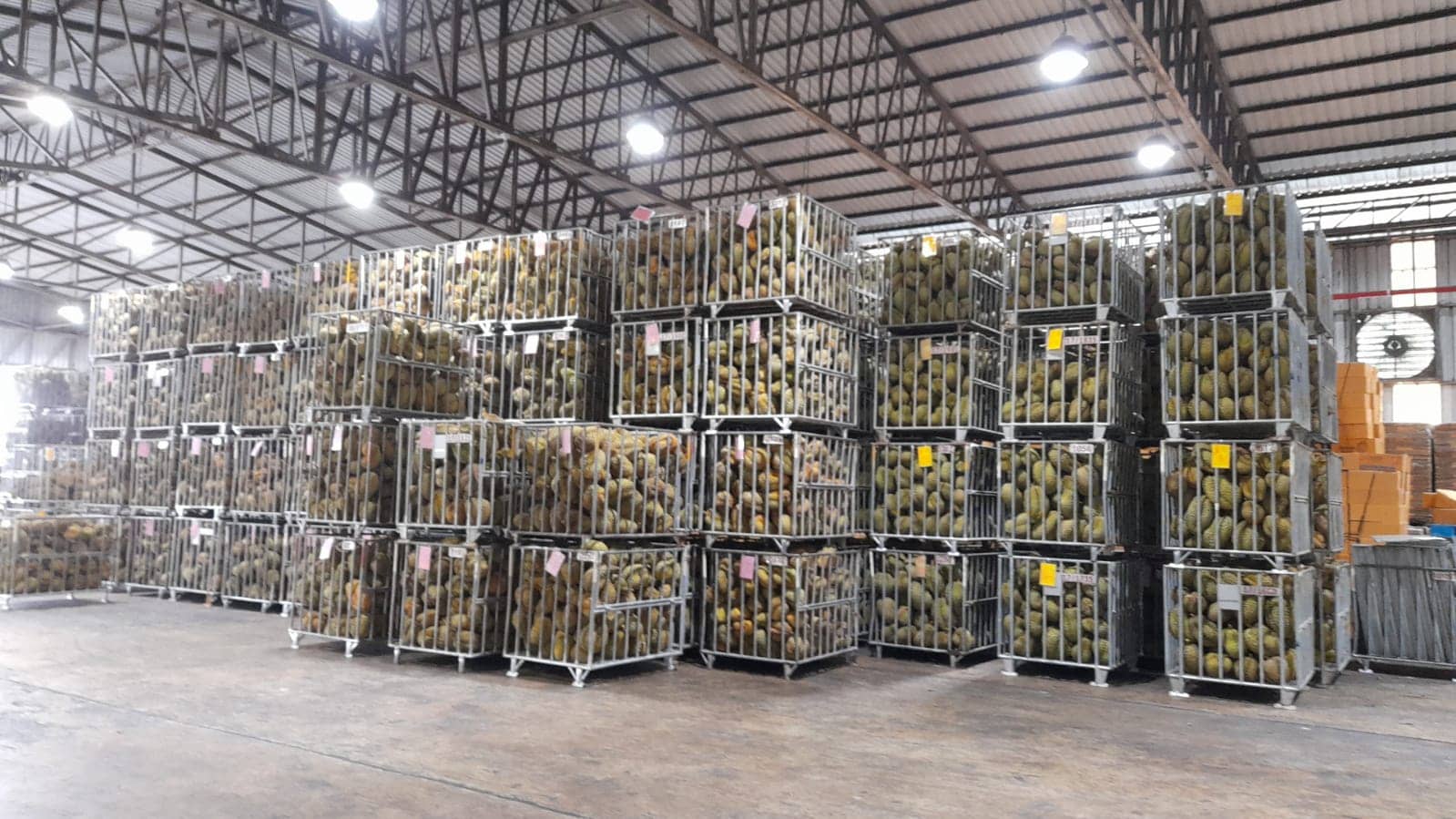

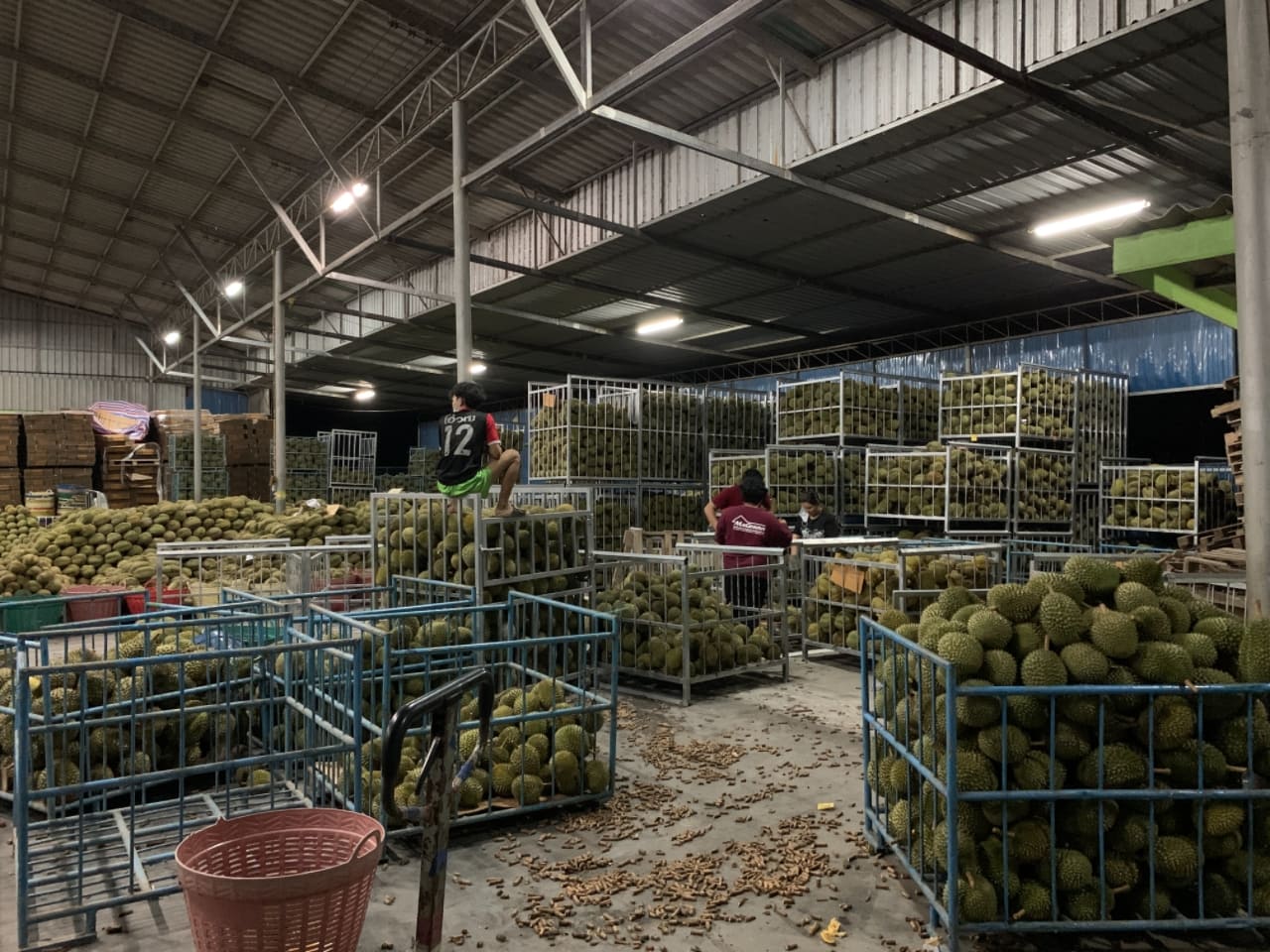

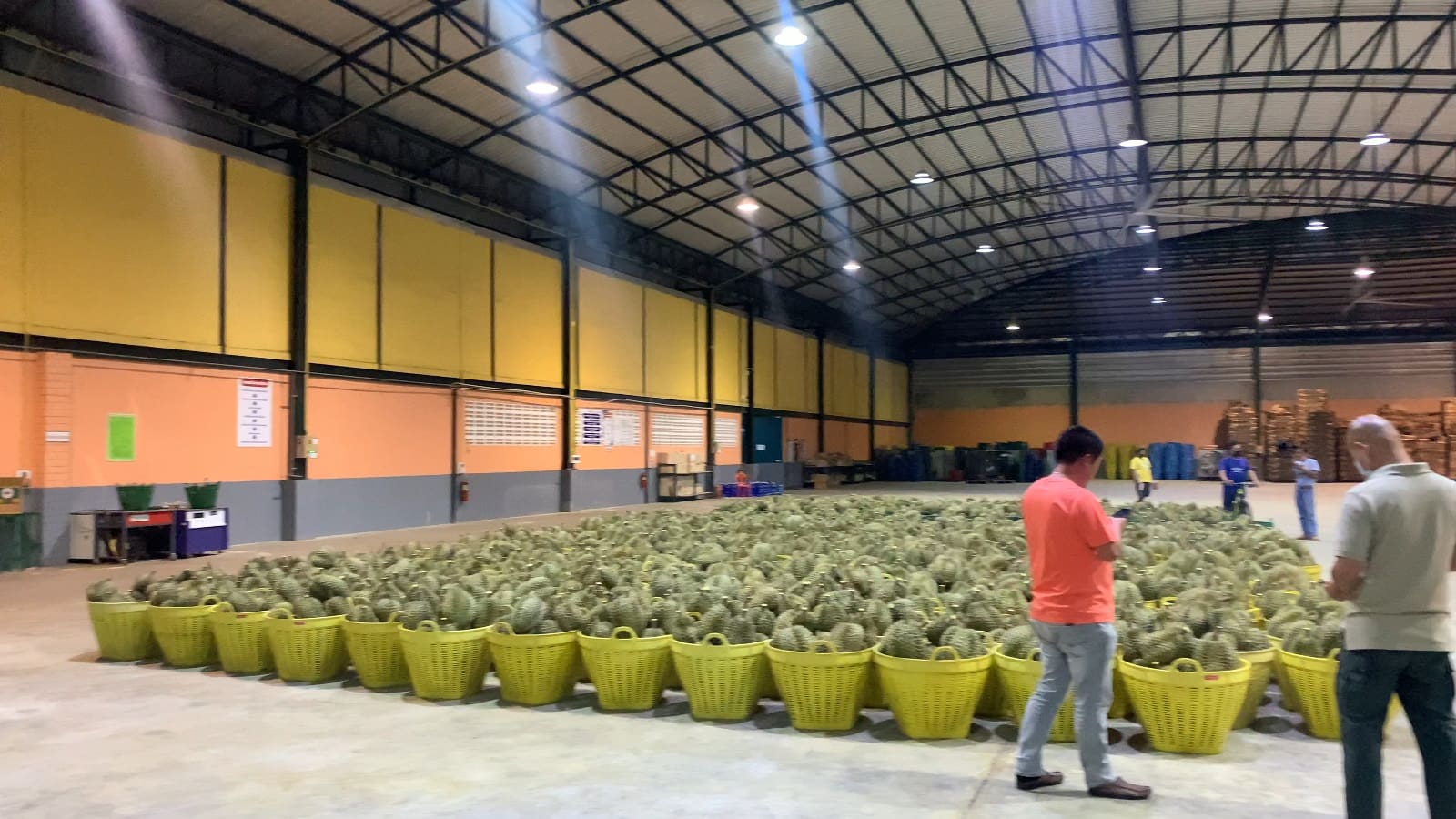

  • Durian Processing Plant
  • Durian Processing Plant
  • Durian Processing Plant
  • Durian Processing Plant
  • Durian Processing Plant
  • Durian Processing Plant
  • Durian Processing Plant
  • Durian Processing Plant
  • Durian Processing Plant



Unique Characteristics of Frozen Durian Pulp





Durian Pulp Frozen

1. Thick Pulp and Dense Internal Structure:

Durian's dense internal structure poses a challenge in efficiently conducting cold temperatures, requiring a nuanced approach to ensure uniform freezing.

2. High Sugar Content and Extended Freezing Point:

The elevated sugar content in durian lowers its freezing point, necessitating extended freezing times. This unique characteristic demands a careful balance between freezing efficiency and preventing dehydration.



Challenges in Durian Pulp Freezing



The journey begins with an acknowledgment of the hurdles faced in preserving durian's essence. The intricacies of durian's high sugar content and distinctive texture make it susceptible to pitfalls, notably the vexing issue of surface cracking that diminishes the visual and gustatory appeal of this prized fruit.



1. Insufficient Core Freezing

The failure to achieve adequate core freezing temperatures results in continued spoilage during storage. This challenge stems from the unique thickness and density of durian pulp, making it resistant to traditional freezing methods.



2. Surface Quick-Freezing Issues

Rapid freezing at the surface can lead to freeze-induced cracks, impacting the visual appeal and overall quality of the durian pulp. The delicacy of the outer layer demands careful consideration during the freezing process.



3. Excessive Freezing Time and Dehydration

Prolonged freezing durations contribute to excessive dehydration, affecting the overall texture and mouthfeel of the durian pulp. The challenge lies in finding the delicate balance between rapid freezing and moisture retention.



4. Temperature Fluctuations and Cell Damage

Temperature fluctuations pose a significant risk, causing the reformation of ice crystals and disrupting the cellular structure of durian pulp. Maintaining a stable freezing environment becomes crucial to preserve the fruit's integrity.





Key Considerations in Durian Pulp Freezing



1. Optimizing Freezer Parameters

Adjusting the freezer's working temperature and extending freezing times ensures thorough core freezing, mitigating the risk of spoilage during storage.



2. Controlled Cooling Rates

Precision is key in controlling cooling rates to prevent surface freeze-induced cracks, maintaining the aesthetic appeal of the durian pulp.



3. Strategic Placement for Adequate Air Exposure

Careful arrangement of durian pulp ensures optimal exposure to cold air, facilitating uniform freezing and preserving the fruit's texture.



4. Selecting High-Efficiency Liquid Nitrogen Freezing Equipment

The crux of success lies in choosing advanced liquid nitrogen cabinet freezers, capable of rapid and uniform freezing, thus overcoming the inherent challenges posed by durian's unique characteristics.





Innovative Solutions with Liquid Nitrogen Quick Freezing Freezers



Introducing liquid nitrogen freezer chamber as the avant-garde solution to durian pulp preservation. These cutting-edge machines bring forth the marvel of controlled freezing, preventing the formation of large ice crystals that could compromise the integrity and flavor of the durian pulp. The blog navigates through the science behind this breakthrough technique.

  • Liquid Nitrogen Cabinet Freezer
    SPEEDCRYO® Industrial Freezing Equipment
  • Liquid Nitrogen Quick Freezing Machine
    SPEEDCRYO® Cabinet-Type Freezing Machine
  • Cryogenic Freezing Chameber
    SPEEDCRYO® Durian Quick Freezing Equipment





Liquid Nitrogen Freezing Chamber Features for Durian Pulp



Liquid nitrogen cabinet freezers offer several key advantages for the rapid freezing of durian pulp, making them the ideal choice for durian processing enterprises.



1. Extremely Low Temperature

Liquid nitrogen reaches temperatures as low as -196°C, significantly lower than conventional mechanical freezers. This extreme cold is perfectly suited to address the high sweetness of durian pulp, enabling rapid freezing to the core within a matter of minutes.



2. Rapid Cooling Rate

The rapid injection of liquid nitrogen efficiently transfers cold energy to the interior of durian pulp, surpassing the cooling rate achievable with air cooling. This swift cooling process prevents ice crystal growth, ensuring a quick freeze without compromising the fruit's quality.



3. Excellent Cooling Uniformity

Liquid nitrogen can be directly sprayed onto the surface of durian pulp or placed in a nitrogen atmosphere, ensuring uniform cooling and preventing surface freeze damage. This feature contributes to the preservation of the fruit's integrity.



4. Adjustable Cooling Curve

The freezer allows for precise control of the cooling curve by adjusting parameters such as spray volume and exposure time. This customization prevents issues like freezing cracks due to excessively low temperatures, ensuring optimal cooling efficiency.



5. Maintaining Food Texture

The rapid cooling generates tiny ice crystals, avoiding damage to the cell structure of durian pulp. As a result, the texture remains fine and intact even after thawing.



6. Automated Operation

Advanced electronic controls and intelligent systems enable automated regulation and operation, eliminating the need for manual intervention. This automation enhances efficiency and consistency in the freezing process.



7. Safety and Hygiene

Liquid nitrogen completely evaporates, leaving no residues, ensuring the absolute safety and hygiene of the frozen product.

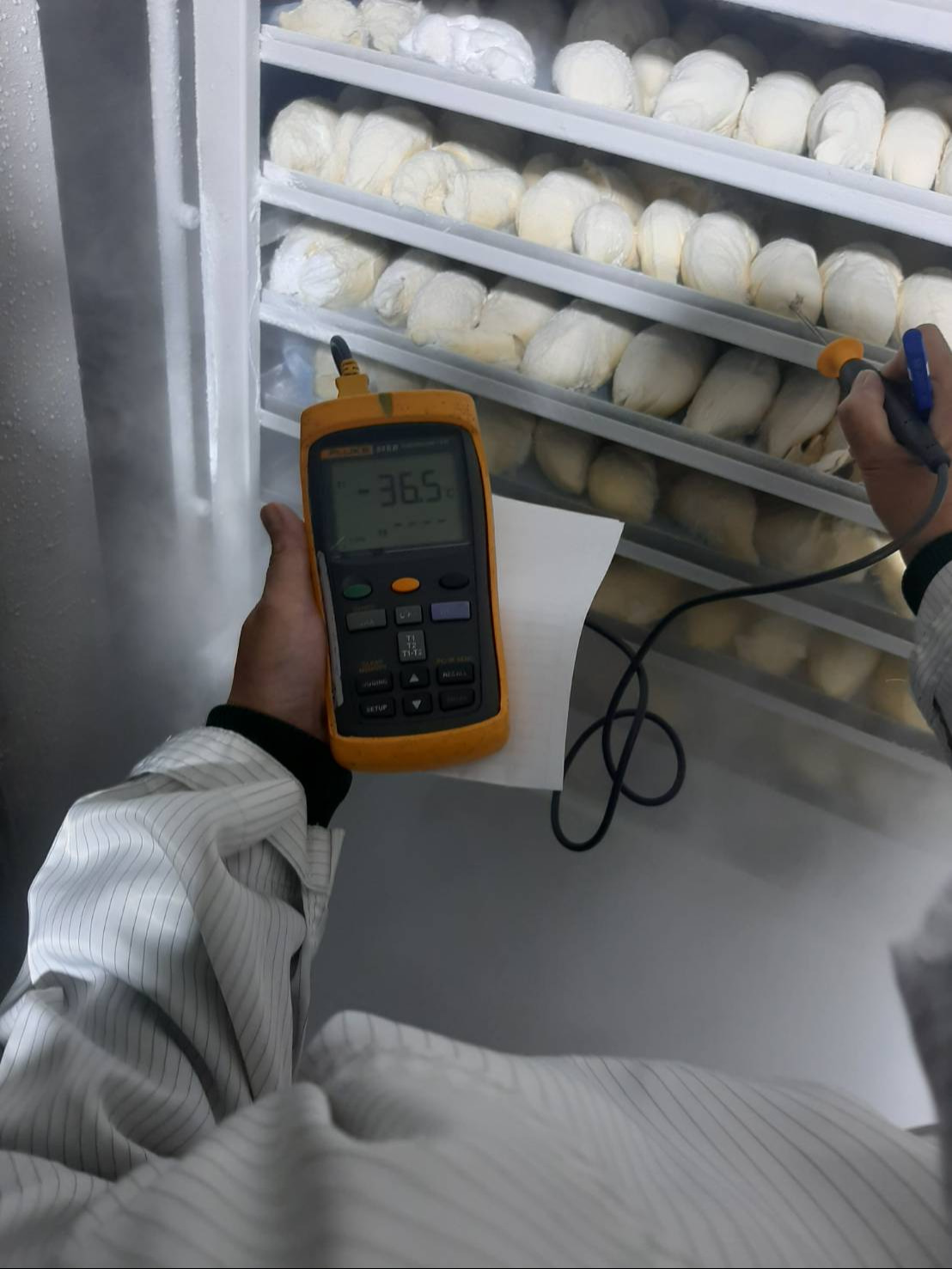

8. Optional Configuration - Food Core Temperature Detector

Users can monitor the central temperature reduction of durian pulp in real time on the control screen. This feature allows even novices to precisely control freezing temperature and time, minimizing nitrogen loss and mitigating the impact of over-freezing on the product.



In summary, liquid nitrogen cabinet freezers offer a multitude of advantages, including rapid freezing, uniform cooling, intact cell structure, automated operation, and more. These features make them the ideal choice for durian processing enterprises seeking to enhance the efficiency and quality of their frozen products.





Case Study - Rapid Freezing Process by SPEEDCRYO® Industrial Liquid Nitrogen Freezer



With a range of models catering to production capacities from 150kg/hr up to 3000kg/hr, our SPEEDCRYO® Industrial Liquid Nitrogen Freezer systems are designed to meet diverse freezing needs.

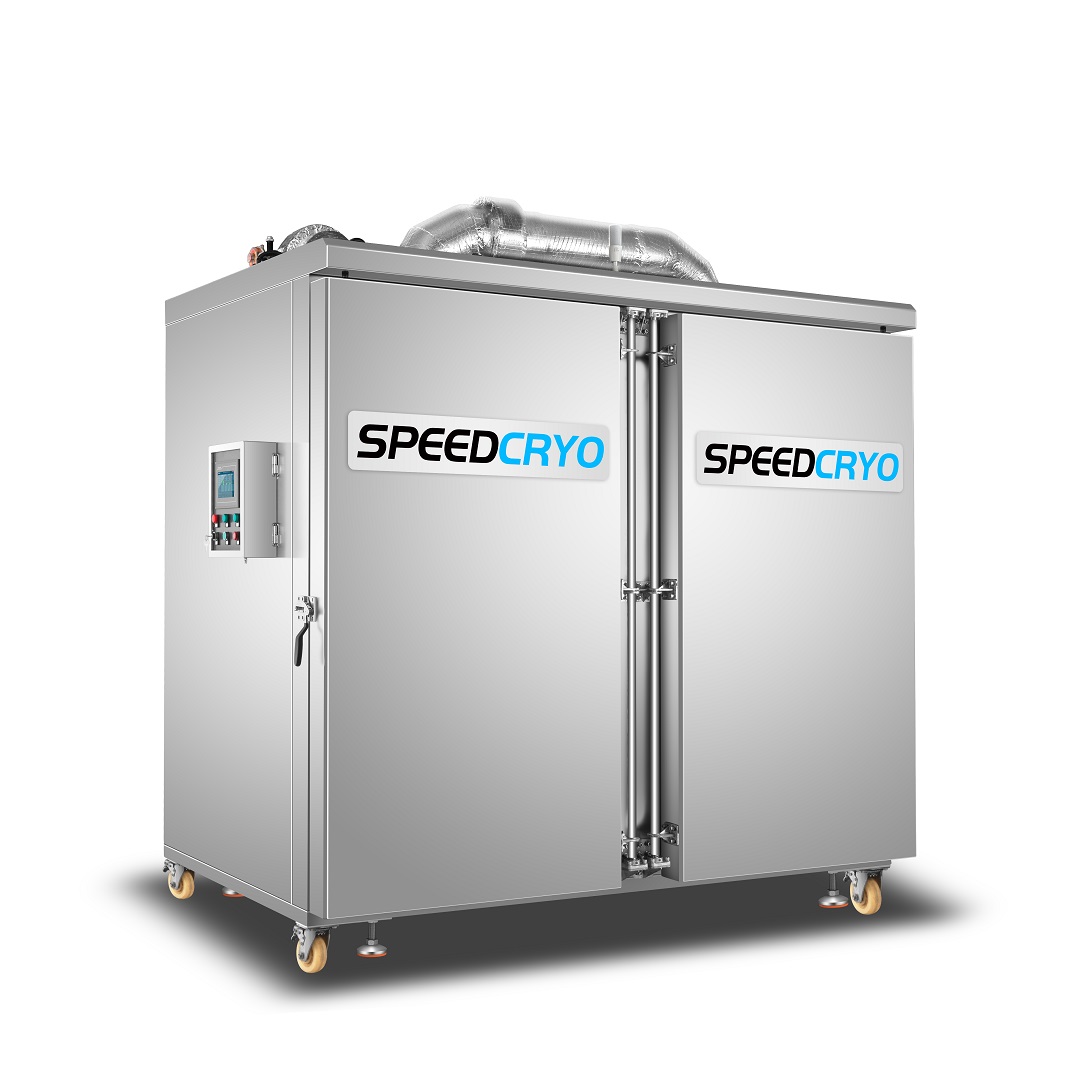

Double-Door Liquid Nitrogen Cabinet Freezer

Dual-Cabinet Cryogenic Freezing Equipment as an example:



Each tray accommodates approximately 4~5kg of durian pulp (400*600mm).

60 trays per batch, totaling 240~300kg per batch.

Rapid freezing is achieved in just 30 to 45 minutes.

Freezing temperature maintained between -70°C to -80°C.

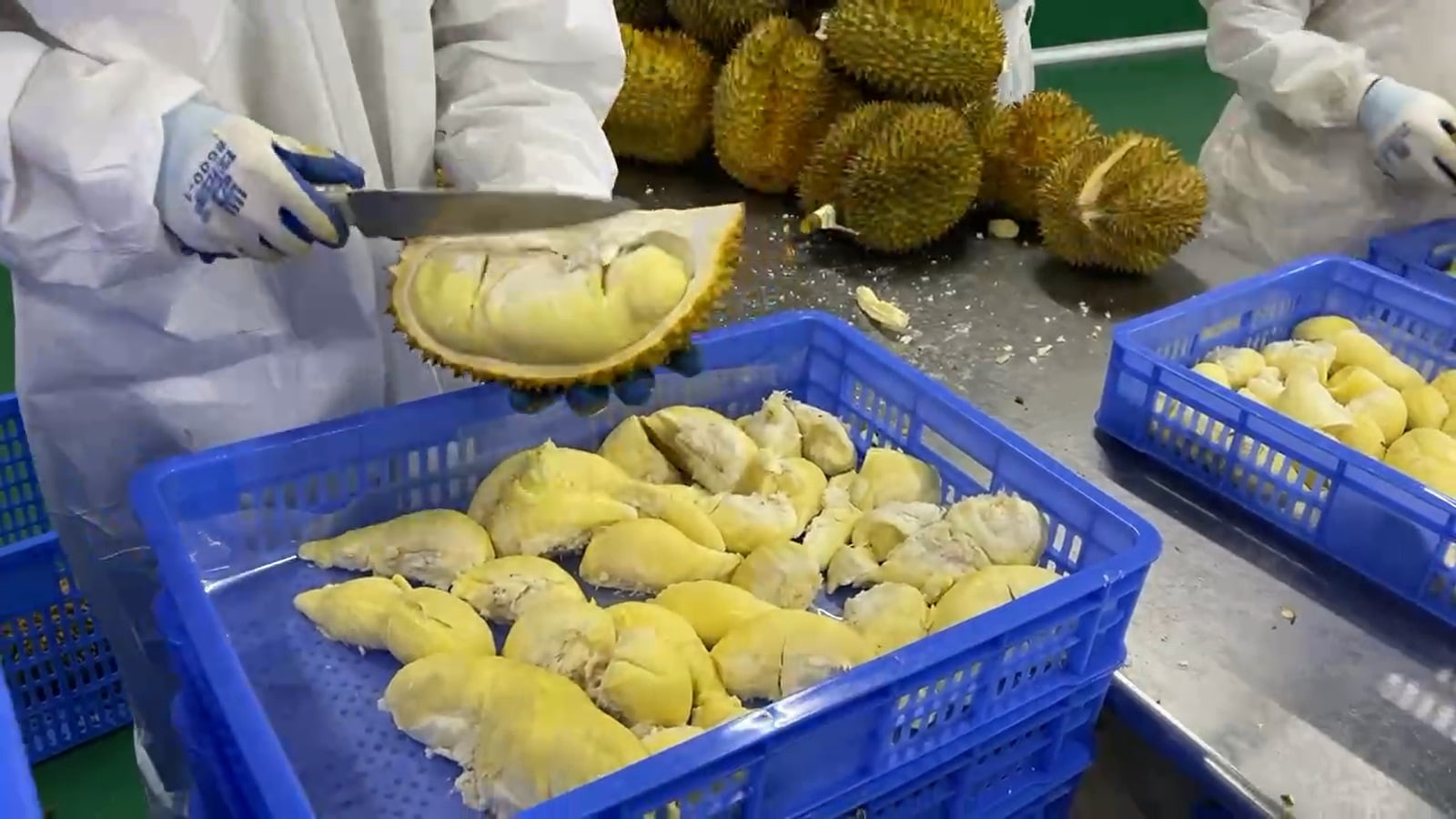

  • Durian Pulp Processing

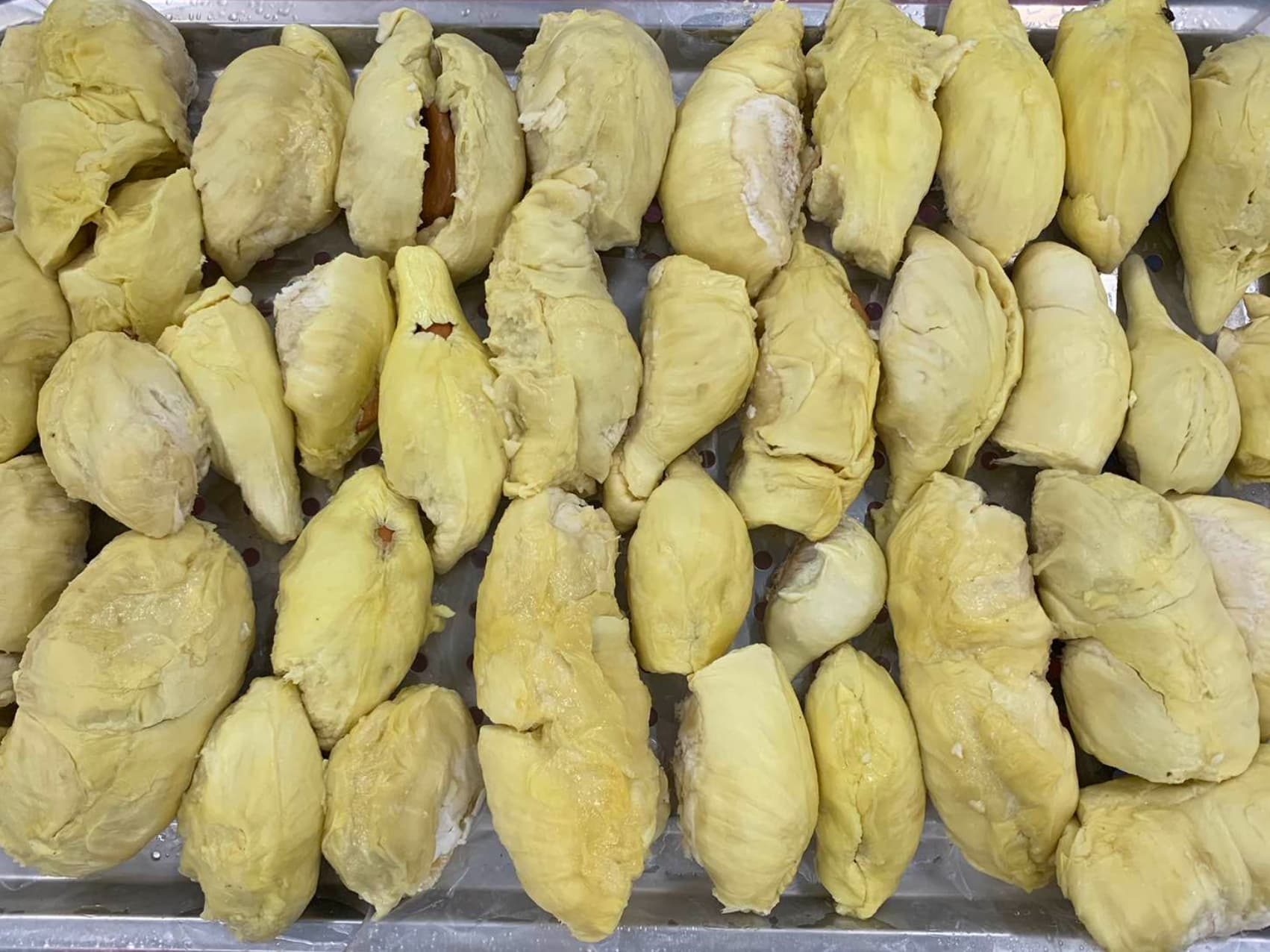

    Fresh Durian Pulp

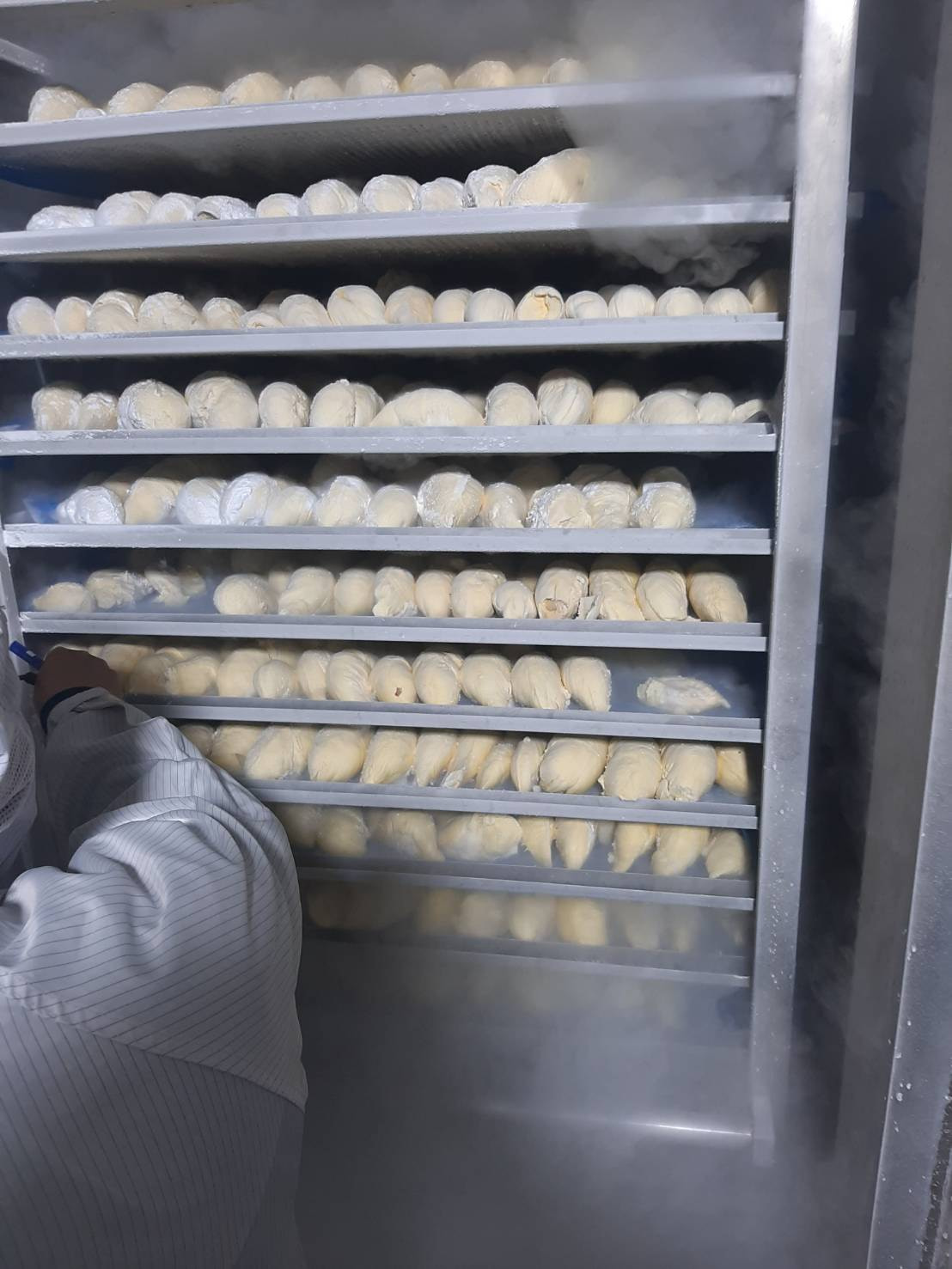

  • Frozen Durian Pulp by Cryogenic Freezing

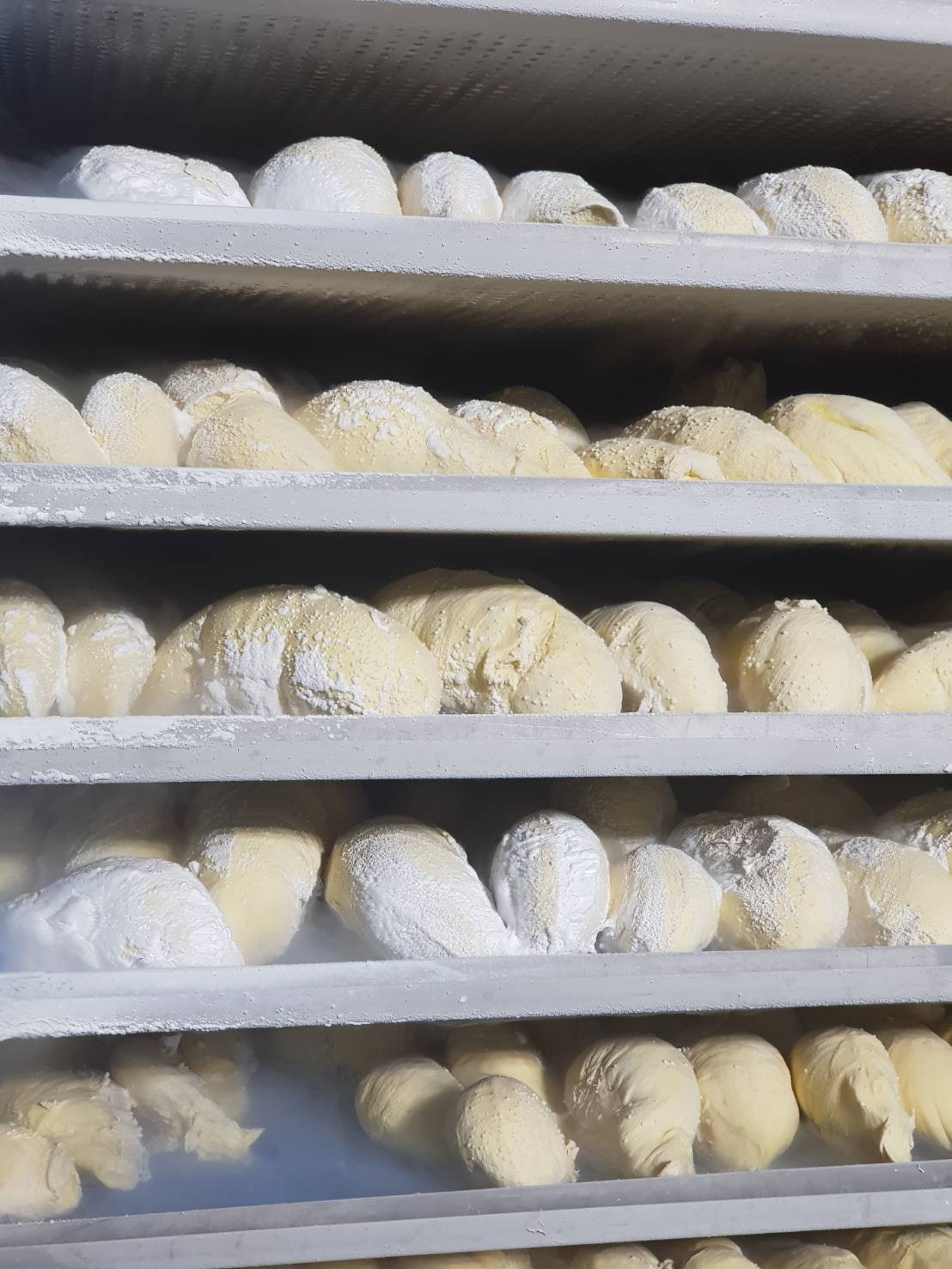

    Frozen Durian Pulp after Quick Freezing

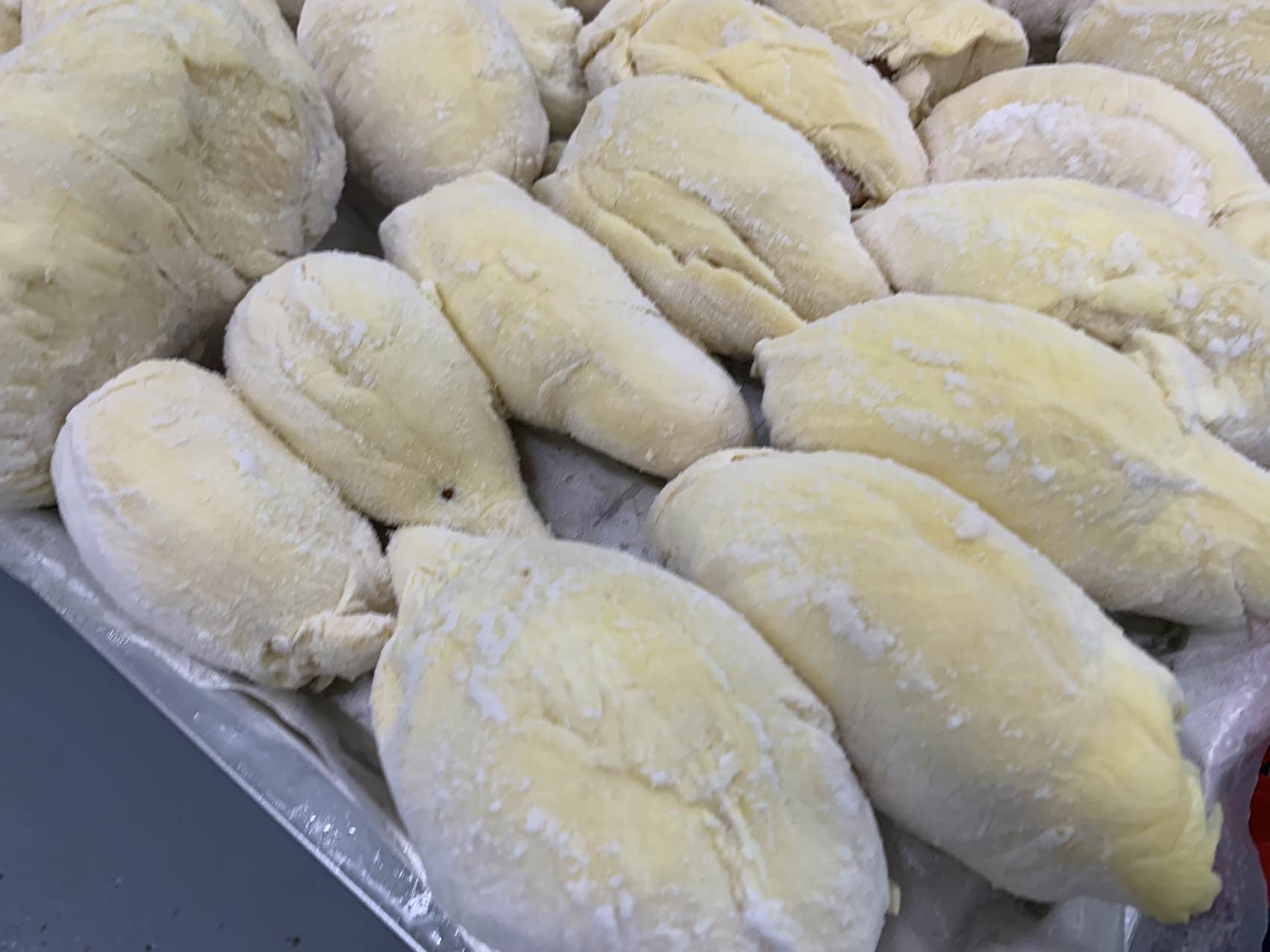

  • Quick Freezing Durian Pulp by Liquid Nitrogen
    Tiny & Evenly Distributed Ice Crystals





Our clients express utmost satisfaction with the rapid freezing of durian pulp using our quick freezing equipment. The surface remains free from freeze-induced cracks, and the process is 5 to 10 times faster than traditional freezing methods. Even after thawing, the durian pulp retains its fresh and enticing texture. This not only extends the shelf life of the product but also facilitates long-distance transportation. There is no need to worry about the durian pulp compressing or deforming during transit, ensuring it reaches its destination with the same fresh quality and taste.

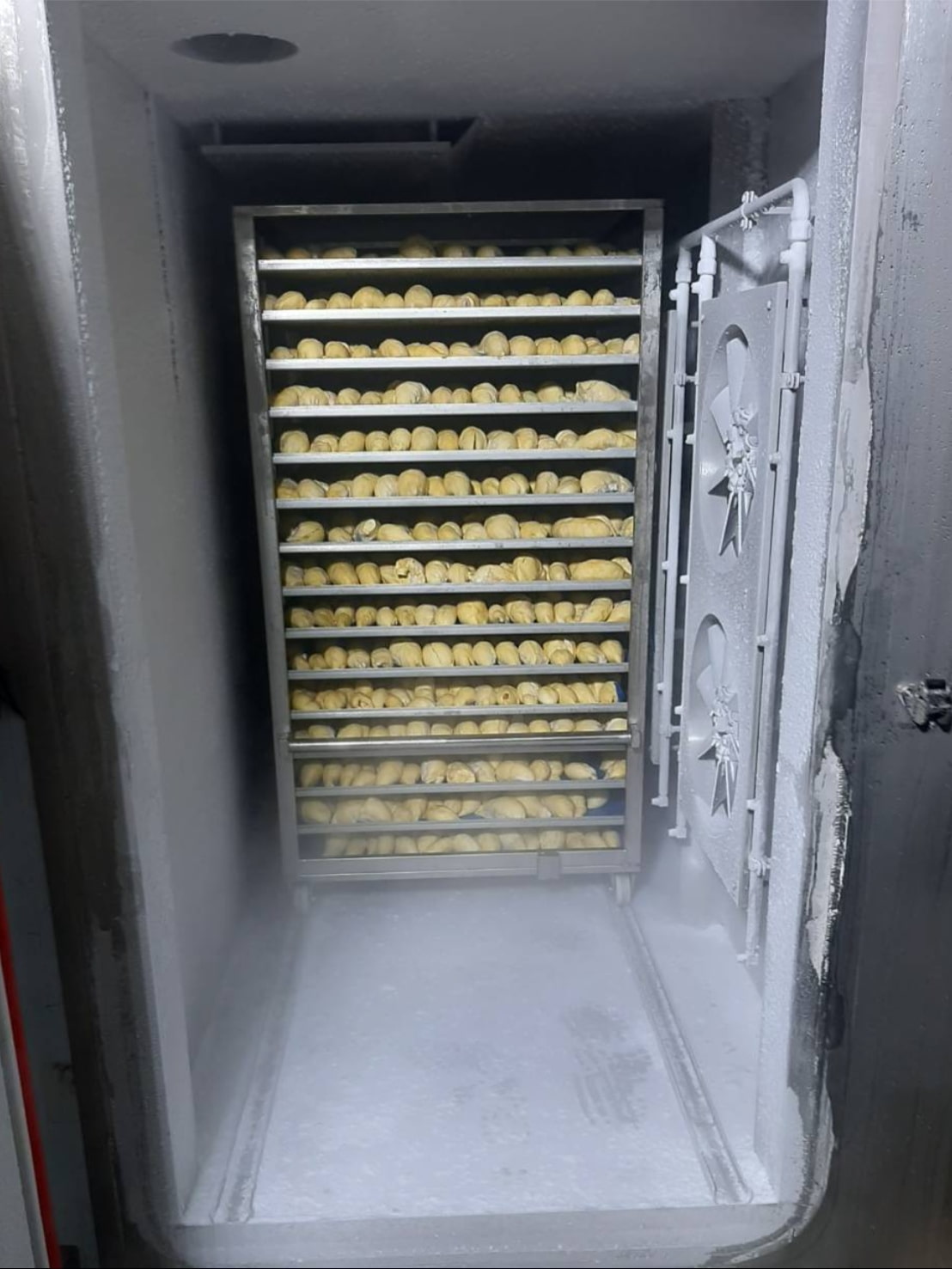

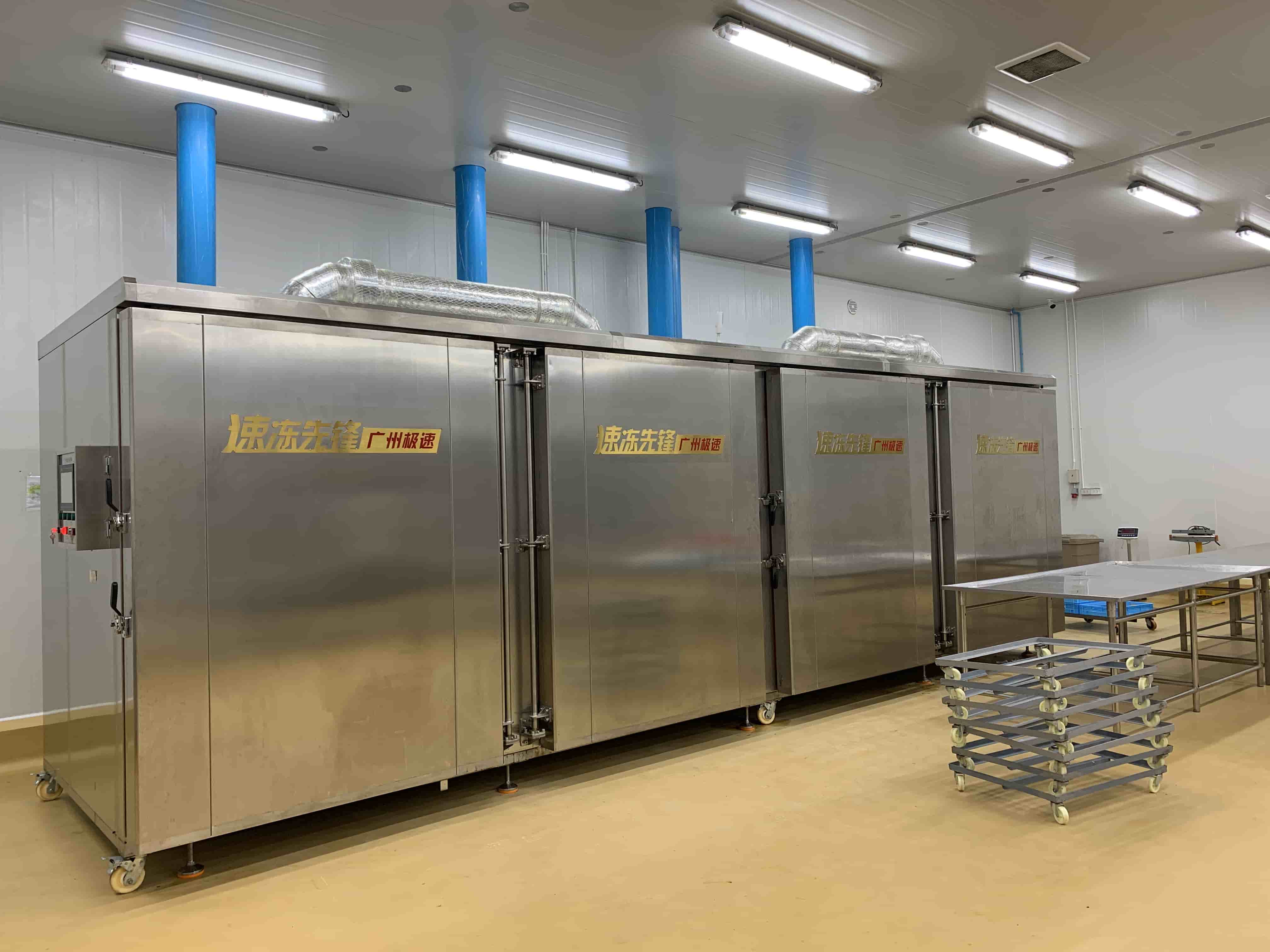

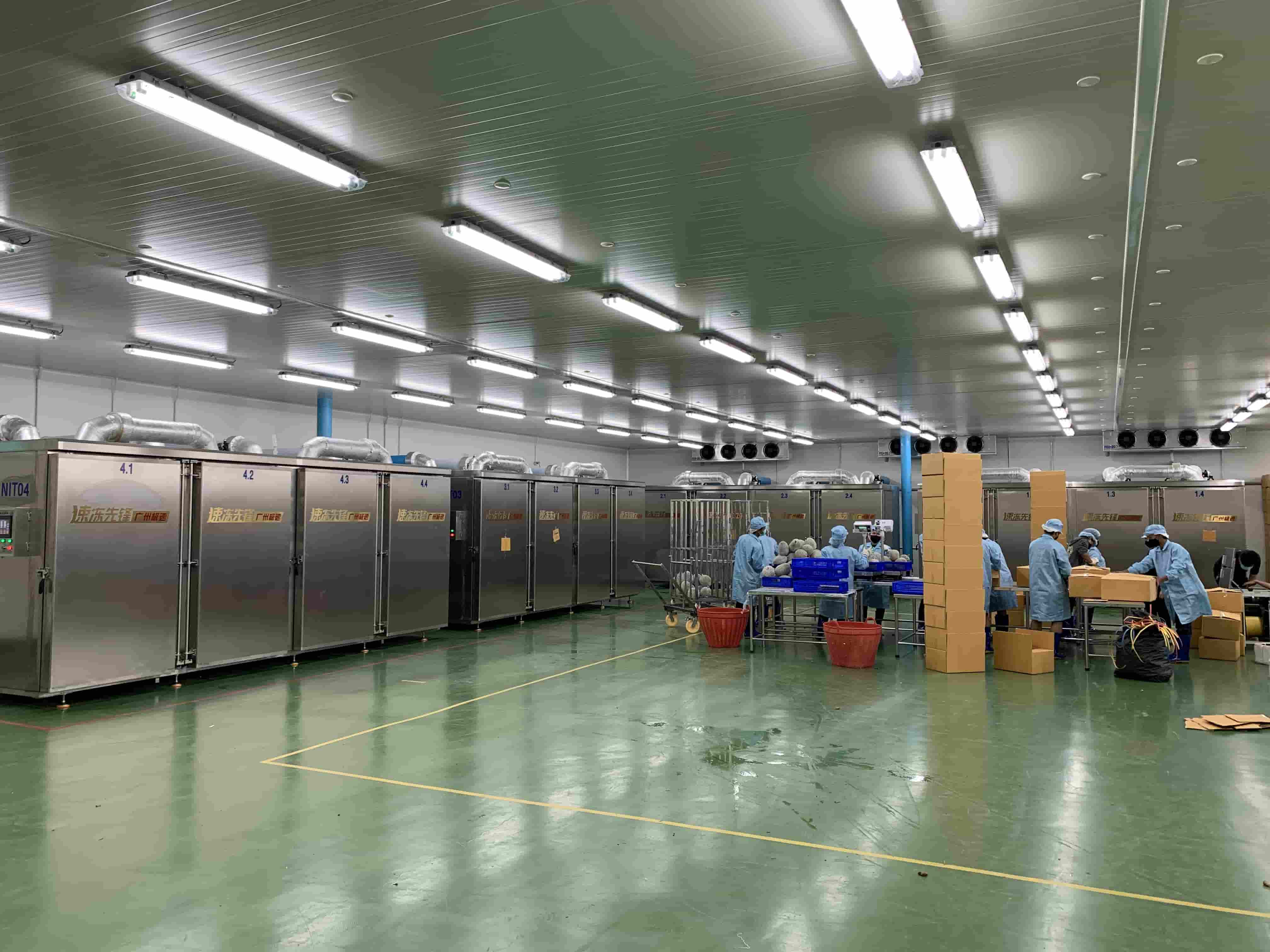

  • Industrial Food Freezer for Durian Pulp Freezing
    Mass Production for Durian Pulp Freezing
  • Frozen Durian Pulp Processed by Cryogenic Freezer
    Mass Production for Durian Pulp Freezing
  • Druian Freezer for Durian Pulp Freezing
    Customer Satisfy with the Frozen Durian Meat Quality
  • Durian Meat Ultra Fast Freezing
    Ultra Fast Freezing & Excellent Quality





Elevate Your Durian Processing with Cutting-Edge Freezing Solutions



In conclusion, the revolutionary liquid nitrogen cabinet freezers redefine the standards of durian processing. From lightning-fast freezing times and precise temperature control to the preservation of the fruit's natural texture and flavor, these innovative systems stand as the cornerstone for durian enterprises aspiring to elevate efficiency and product quality.



Unlock a realm of possibilities with our SPEEDCRYO® Industrial Liquid Nitrogen Freezer, offering customizable solutions tailored to your production needs. Whether you're a small-scale operation or a large-scale enterprise, our range of models ensures flexibility and unmatched performance. Delight in the satisfaction of your customers as they experience durian pulp that not only defies traditional freezing challenges but also outshines in freshness and taste.



Embark on a journey to revolutionize your durian processing. For further details on our rapid freezing solutions, inquire today and discover how SPEEDCRYO® can transform the way you freeze durian, ensuring superior quality and efficiency in every batch. Your success in the durian market starts here!
