What Is Marine Flake Ice Machine?



Marine seawater ice machine is a type of ice-making equipment installed on fishing vessels. It directly utilizes seawater to produce flake ice, which is used for cooling and preserving freshly caught fish. The components of the marine seawater ice machine that come into contact with water are made of stainless steel 316L to prevent corrosion from seawater. The compact size of the marine seawater ice machine makes it suitable for use on various types of navigating vessels.

Differences Between Marine Flake Ice Machine and Conventional Flake Ice Machine?

Conventional ice machines refer to ice-making machines used on land. They typically use freshwater to produce flake ice or other ice shapes for applications in beverages, food, or industrial settings. The components of conventional ice machines that come into contact with water can be made of stainless steel or carbon steel materials, depending on the application and quality requirements.

The main differences between marine seawater ice machines and conventional ice machines are as follows:

• Different Ice-Making Raw Materials:

Marine seawater ice machines use seawater, while conventional ice machines use freshwater.

• Different Ice-Making Temperatures:

The ice-making temperature for marine seawater ice machines is -30°C, whereas for conventional ice machines, it is -5°C. This implies that marine seawater ice machines require more refrigeration horsepower to produce ice⁵.

• Different Ice-Making Mechanisms:

Marine seawater ice machines employ a piston-type compressor and an extended oil tank to overcome the severe rocking of the vessel. These machines can operate normally even when the vessel is tilted at a 30-degree angle. Conventional ice machines may use screw or scroll compressors and do not require special anti-vibration design.

• Different Ice-Making Modes:

Marine seawater ice machines can only produce flake ice, while conventional ice machines can produce various shapes of ice, including flake ice, cube ice, tube ice, and spherical ice.

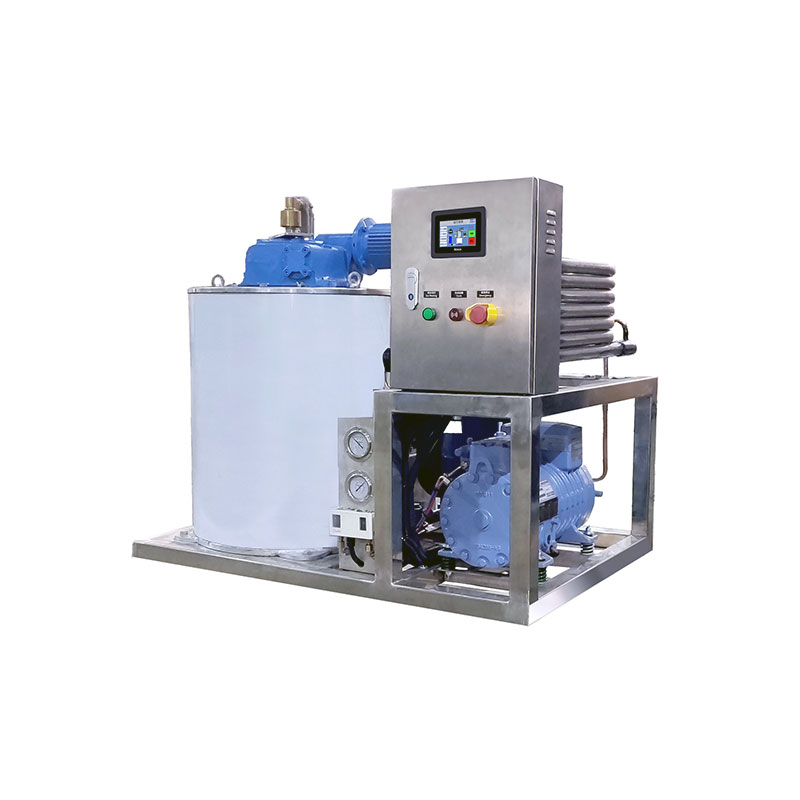

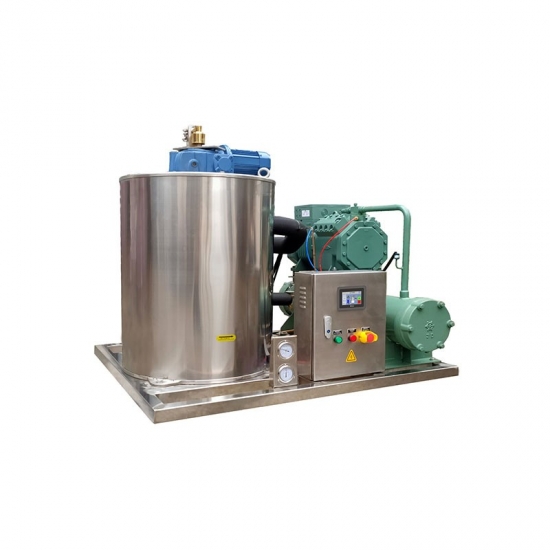

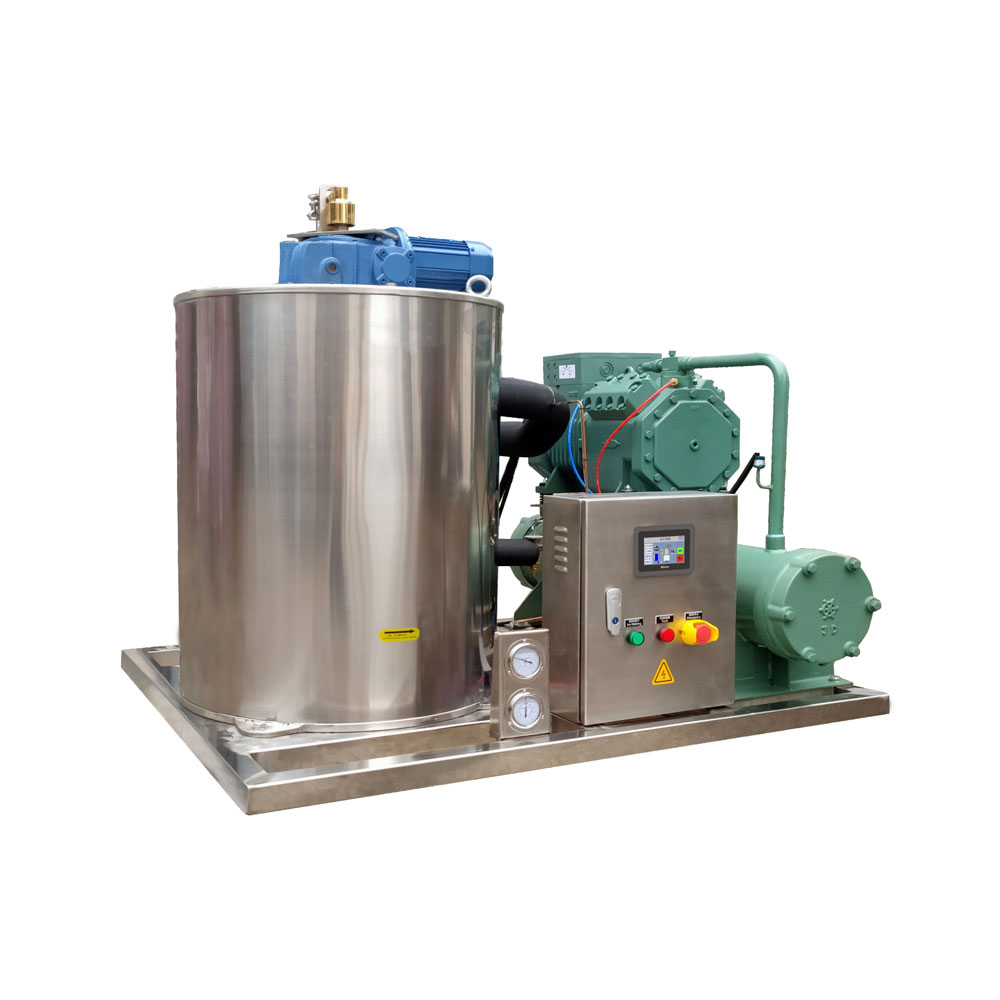

SPEEDCRYO Marine Flake Ice Machine



(1) Specially optimized and reinforced design for maritime operational environments.

(2) The compressor is equipped with a marine oil tank to ensure rapid oil return, featuring an anti-tilt and sway design.

(3) The evaporator inner container is made of corrosion-resistant 316L material to guard against seawater corrosion.

(4) Water-cooled condenser heat exchange pipes are made of aluminum brass material to prevent corrosion from seawater.

(5) Utilizes seawater for ice production, with the ice flakes directly falling into the ship's hold.

SPEEDCRYO - Experienced and Reliable Manufacturer of Ice Machines

SPEEDCRYO is a experienced manufacturer and supplier of flake ice machines, dedicated to providing efficient and reliable ice-making solutions. With a manufacturing facility spanning 30,000 square meters, we have assembled a highly experienced team to deliver outstanding products and services to the cold chain industry.

Established in 2014, SPEEDCRYO boasts a decade of expertise in the field of ice machine manufacturing. Beyond ice machines, we specialize in the production of -196°C liquid nitrogen ultra-low temperature food freezing equipment, refrigeration and preservation devices, quick-freeze storage, refrigerated containers, and other cold chain-related equipment.

At the core of SPEEDCRYO is technological innovation, supported by over 100 patented cold chain technologies to ensure our products lead the industry in performance and quality. Our products are exported to over 20 countries and regions, with laboratories established in Thailand and China, providing global technical support and services.

In addition, SPEEDCRYO has accumulated 10,000 square meters of experience in the construction and operation of cold chain food industry parks. We are committed to building a safe, efficient, and environmentally friendly cold chain system, providing robust support for the development of the food industry.

Choose SPEEDCRYO for a professional and reliable partnership in the cold chain industry. We look forward to collaborating with you to create a brilliant future for the cold chain sector!
