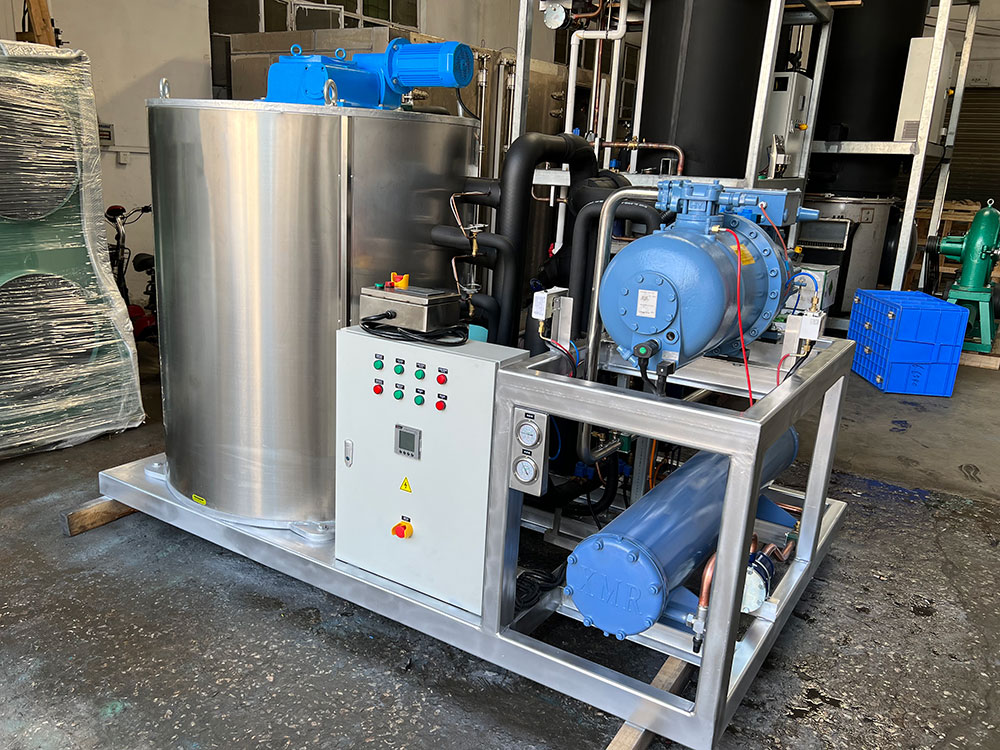

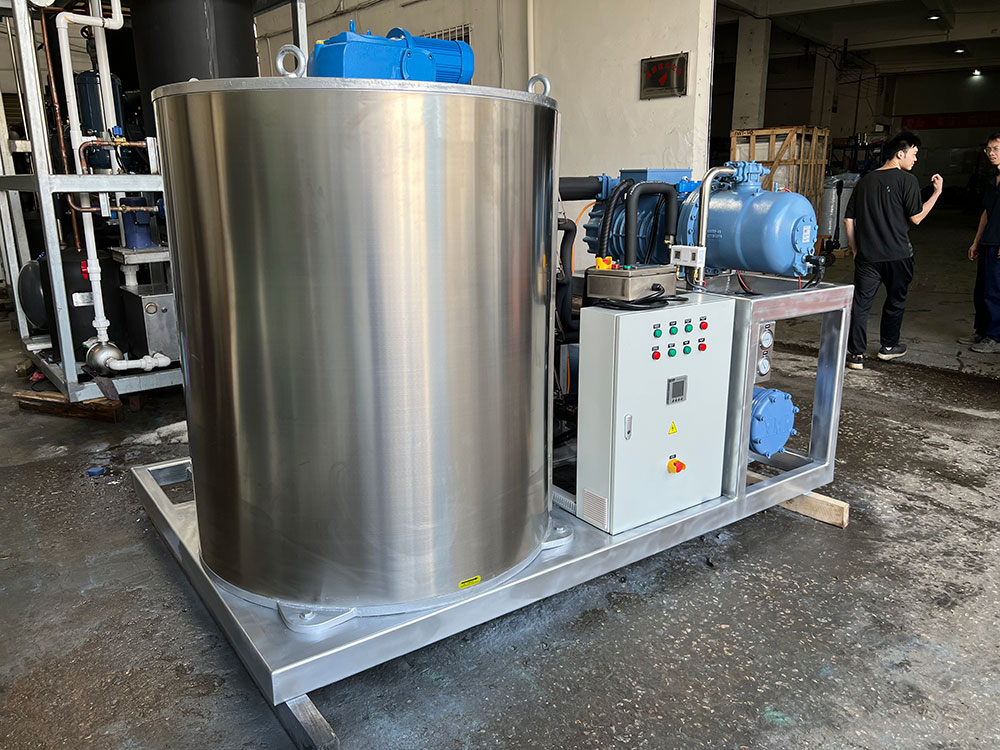

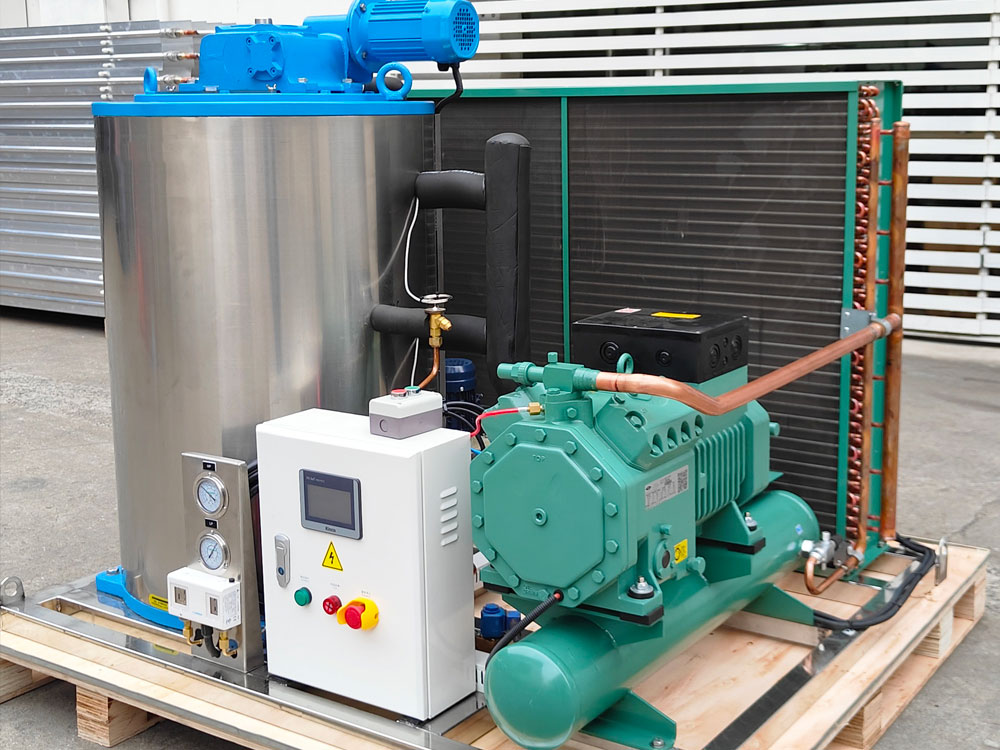

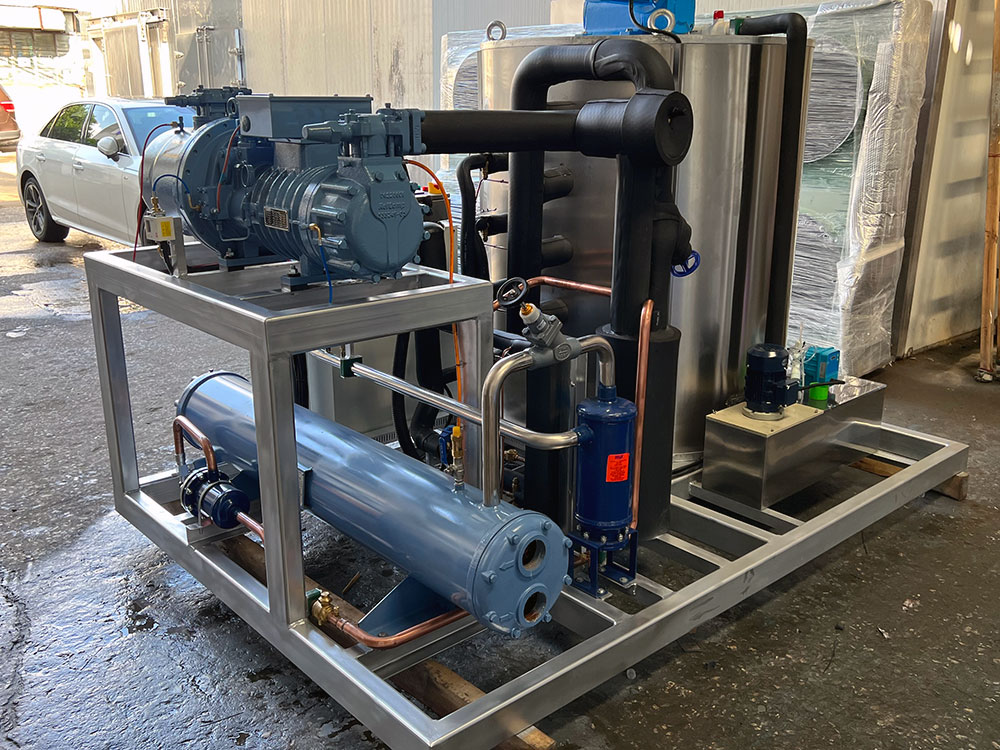

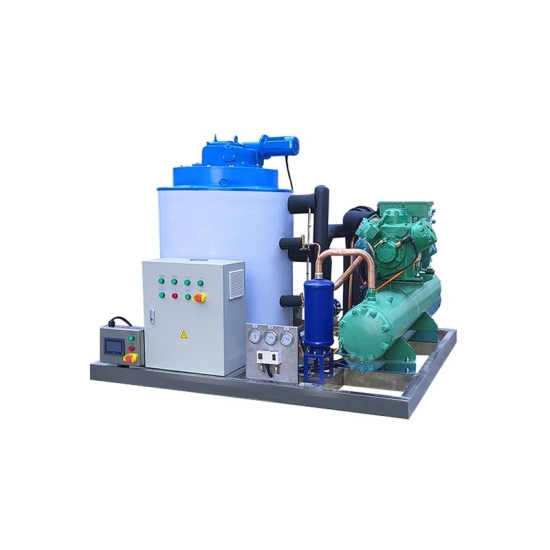

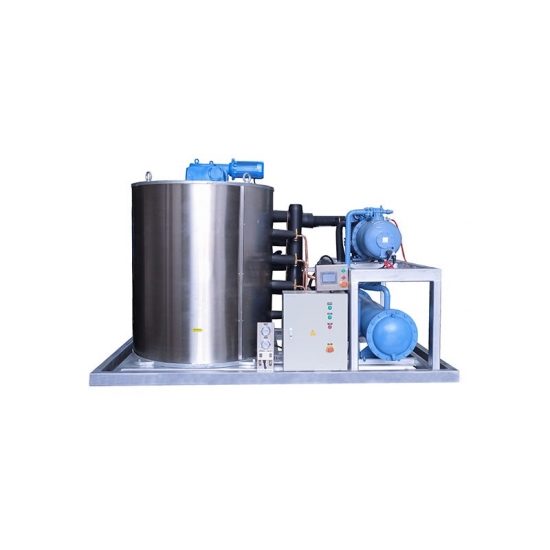

The SPEEDCRYO Industrial Flake Ice Machine offers greater production capacities and customizable designs based on user needs compared to commercial flake ice makers. It finds wide applications in various industries, including seafood preservation, food processing and storage, fruit and vegetable distribution, pharmaceuticals, concrete mixing temperature control, chemical dyes, and more.
With capacities ranging from 3000KG to 60,000KG per 24 hours and power requirements varying from 12.2KW to 230KW, SPEEDCRYO provides a versatile solution to meet different industrial demands.
Brand:
SPEEDCRYOProduct Name:
Industrial Flake Ice MachineIce Production Capacity:
3000-60000KG/24HCooling Capacity:
Available in multiple modelsInput Power:
12.2-230 KWRefrigerant:
R404A / R507Condensing Method:
Air-cooledVoltage:
380/400V 50/60Hz 3PIce Type:
Flake ice 1.5-2.5mm thickExternal Dimensions:
Available in multiple models
Flake ice is a kind of ice with soft and irregular structure, serves as an optimal choice for cooling and preserving various products, particularly in the meat, poultry, fish, and fruit and vegetable sectors. It has been widely used in concrete cooling, chemical processing, and therapeutic treatments. What sets industrial flake ice machines apart from other types of ice are their numerous advantages.
Operating on a straightforward principle, these machines spray a thin layer of water onto either a rotating or stationary evaporator. The water freezes into a delicate sheet of ice, subsequently harvested by a blade and collected in a storage bin or trolley. To enhance its usability, the ice undergoes sub-cooling, reaching temperatures as low as -7°C, rendering it brittle and easily breakable into small, manageable flakes.
Enhanced Cooling Efficiency: Flake ice boasts a substantial contact surface area, facilitating rapid and uniform cooling of diverse products.
Dry and Non-Clumping Composition: Its dry and sub-cooled nature prevents agglomeration, ensuring that the ice remains free-flowing and does not form undesirable clumps.
Ease of Handling and Transportation: With the flexibility to be stored in bins, trolleys, or conveyed easily, flake ice proves to be highly manageable and transport-friendly.
Economic and Energy-Efficient: The production of flake ice through industrial machines is not only economical but also energy-efficient, requiring minimal water and power consumption.
MODEL | ICE PRODUCTIVITY | INPUT POWER | DIMENSIONS |
3T | 3,000 kg/24h | 12.2 KW | 1700x1200x1200 mm |
4T | 4,000 kg/24h | 16.3 KW | 2000x1700x1500 mm |
5T | 5,000 kg/24h | 19.6 KW | 2100x1700x1500 mm |
8T | 8,000 kg/24h | 29.5 KW | 2300x2000x1700 mm |
10T | 10,000 kg/24h | 45.5 KW | 2800x2000x1850 mm |
15T | 15,000 kg/24h | 61 KW | 3100x2100x1950 mm |
20T | 20,000 kg/24h | 76 KW | 3900x2100x2200 mm |
25T | 25,000 kg/24h | 98 KW | 3900x2100x2400 mm |
30T | 30,000 kg/24h | 115 KW | 3900x2100x2500 mm |
40T | 40,000 kg/24h | 130 KW | 4100x2100x2500 mm |
50T | 50,000 kg/24h | 196 KW | 7250x2200x2450 mm |
60T | 60,000 kg/24h | 230 KW | 7250x2200x2550 mm |
SPEEDCRYO is a cold chain equipment supplier with ten years of history, estabilished in 2014, providing various types of cold chain equipment, including -196°C liquid nitrogen ultra-low temperature freezing equipment, contact plate freezers, quick freezing room, commercial flake ice maker, industrial flake ice maker, marine ice maker, tube ice maker, etc.
As an experienced supplier of flake ice machines, SPEEDCRYO provides small and medium-sized commercial flake ice machines (with a capacity of 300 kg to 2500 kg per day) and large-scale industrial flake ice machines (with a capacity of 3000 kg to 60000 kg per day). Industrial flake ice machines provide customized services according to the needs of enterprises.
