SPEEDCRYO - Professional Aluminum Evaporator Plate Manufacturer

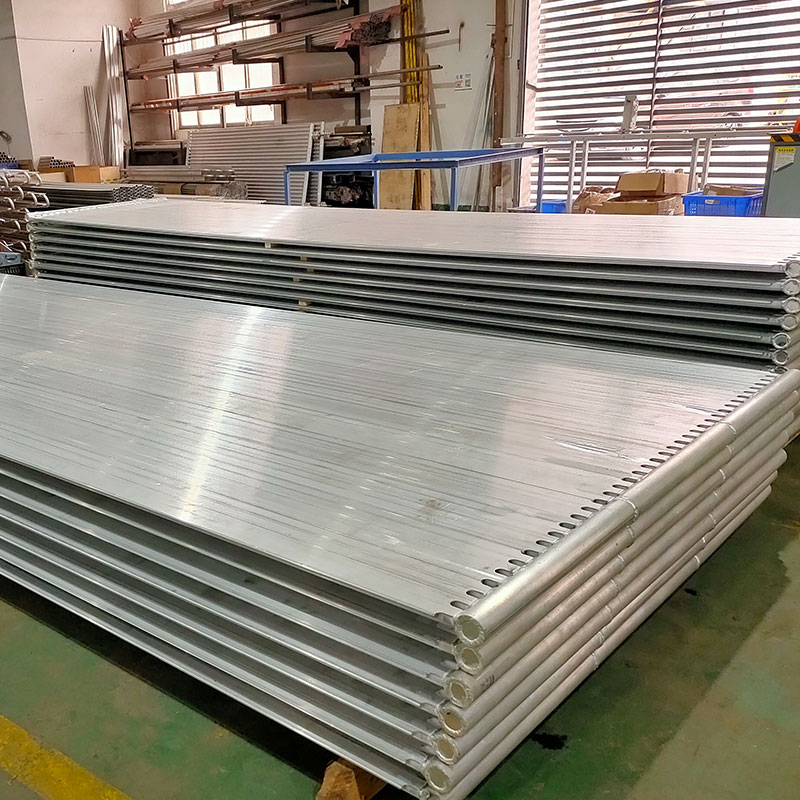

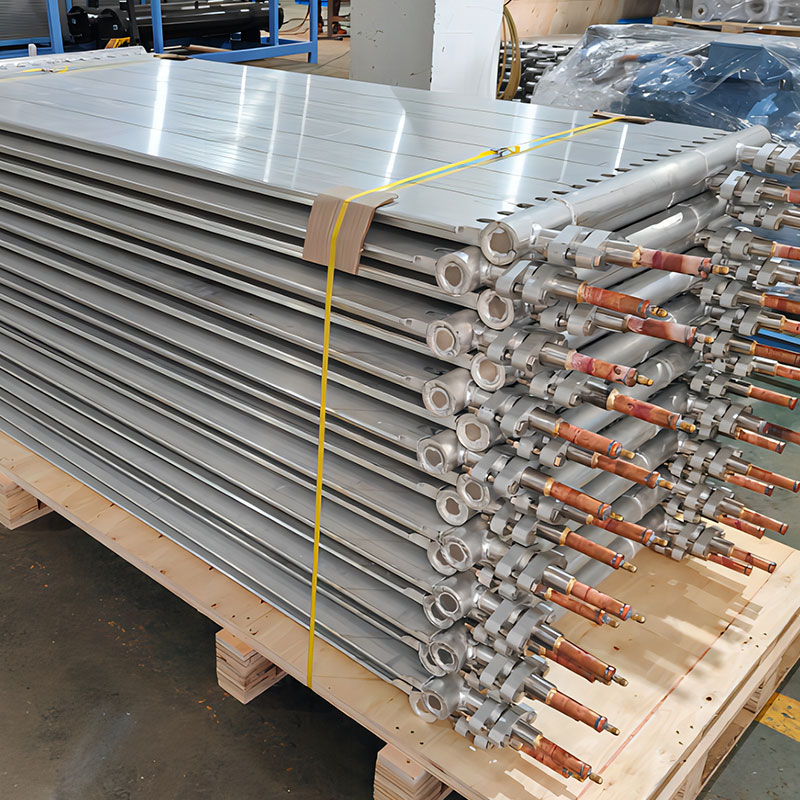

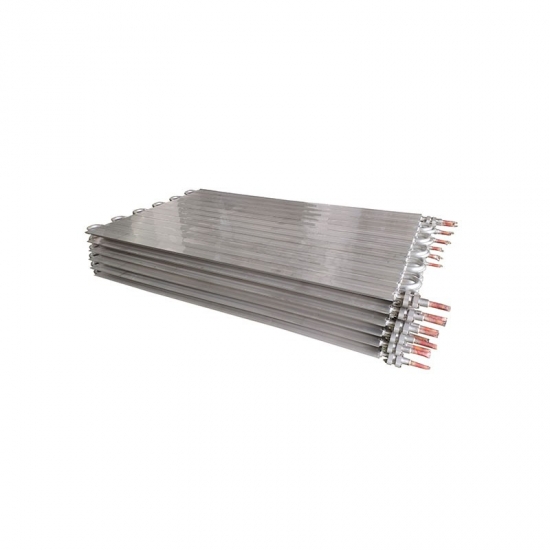

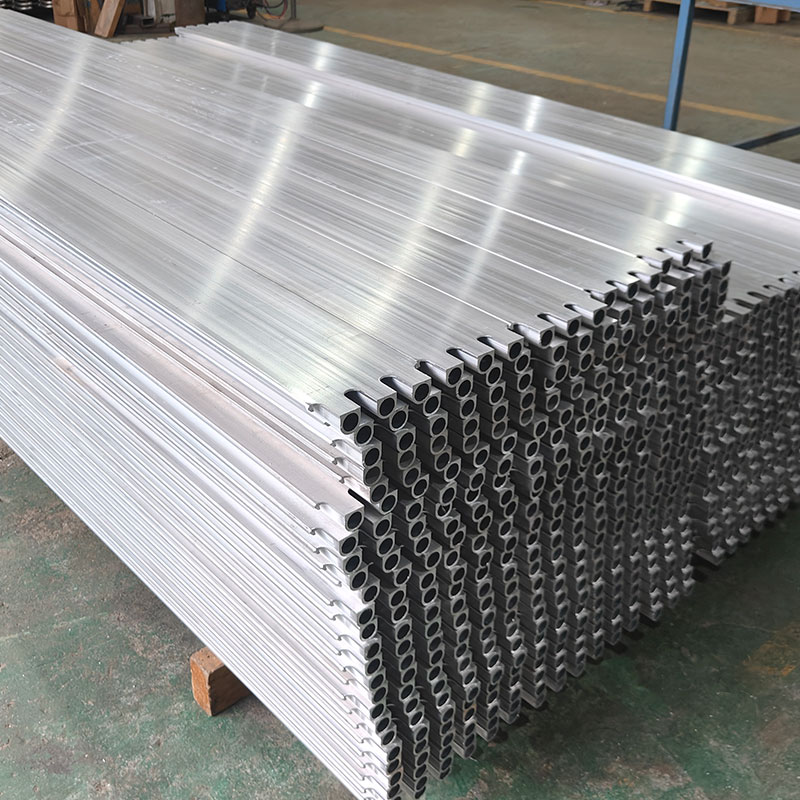

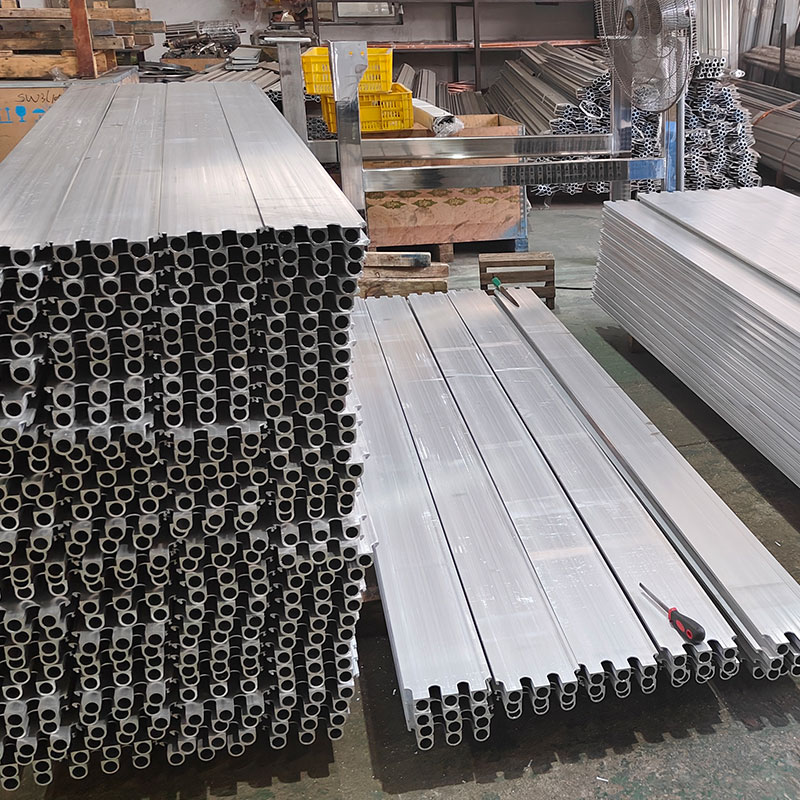

SPEEDCRYO specializes in the manufacturing of professional and high-quality aluminum plates. Primarily catering to international markets, SPEEDCRYO offers two specifications and types of aluminum plate evaporators, with lengths and widths customized according to user requirements to meet diverse market needs.

---

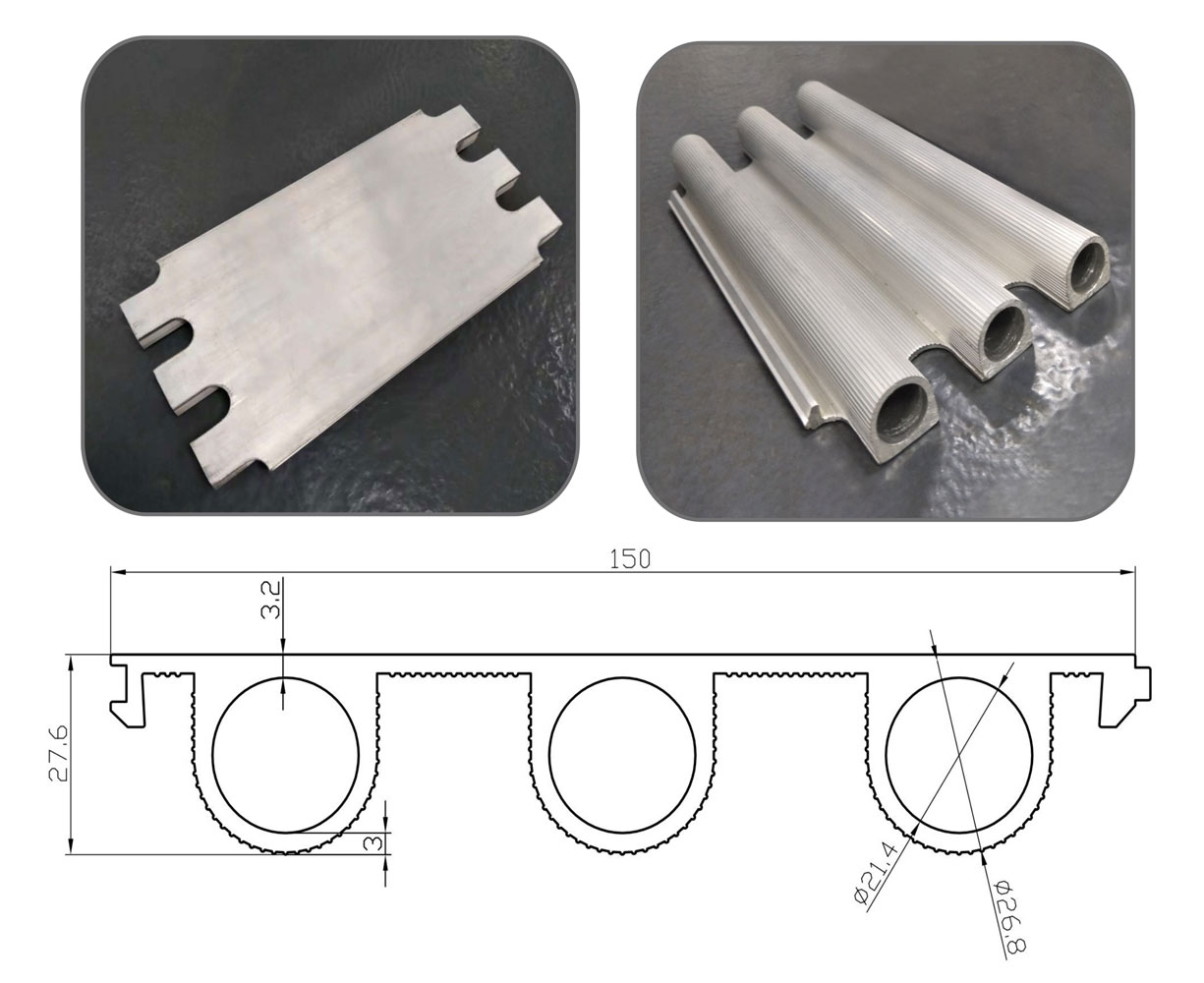

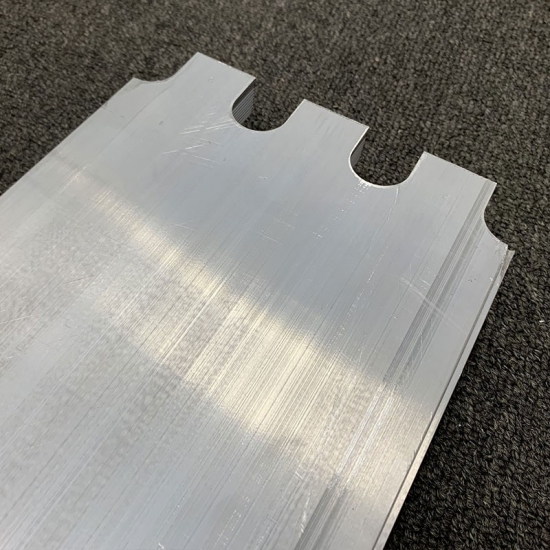

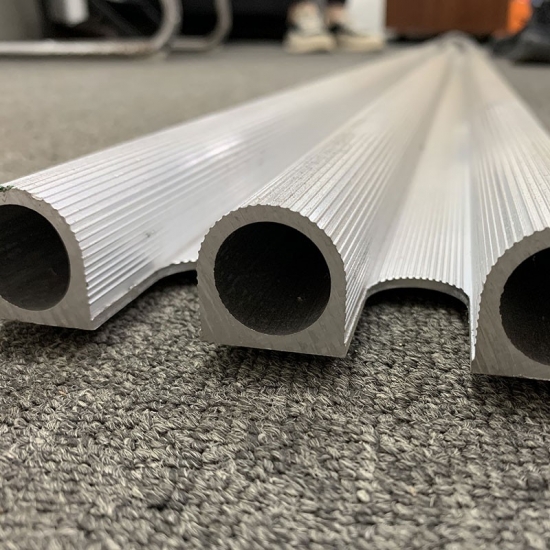

Aluminum Plate: DK1503



Overalll Thickness: 27.6mm

Inner Diameter of Aluminum Tube: 21.4mm

Outer Diameter of Aluminum Tube: 26.8mm

Minimum Width: 150mm

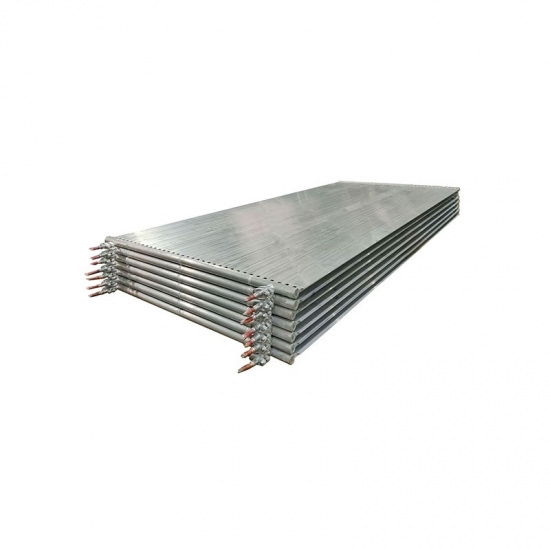

For DK1503, each plate has a width of 150mm, and the total width can be in multiples of 150mm. For example, assembling 10 DK1503 plates creates an aluminum evaporator with a total width of 1500mm (1.5m), while the length of the aluminum plate can be customized as needed.





Aluminum Plate: DK1001



Overall Thickness: 31.56mm

Inner Diameter of Aluminum Tube: 26mm

Outer Diameter of Aluminum Tube: 31.9mm

Minimum Width: 104.79mm



For DK1001 aluminum plates, each individual plate has a width of 104.79mm (105mm), and the total width is customized according to user requirements. For instance, combining 10 DK1001 plates results in an aluminum evaporator with a total width of 1050mm (1.05m). Therefore, the total width of the aluminum evaporator is a multiple of 104.79mm (150mm). The length, on the other hand, can be customized as per user specifications.

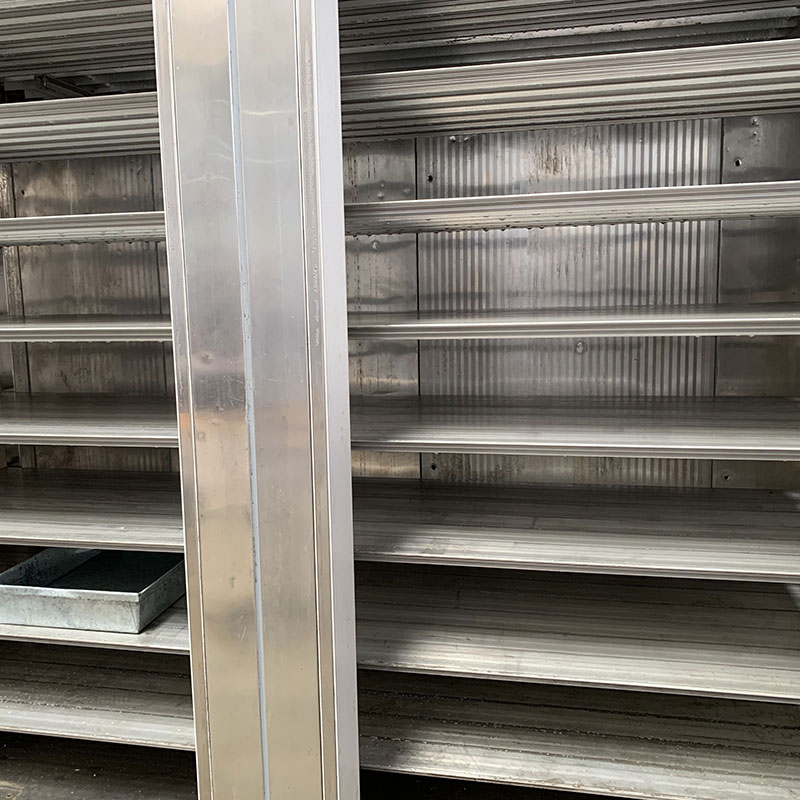

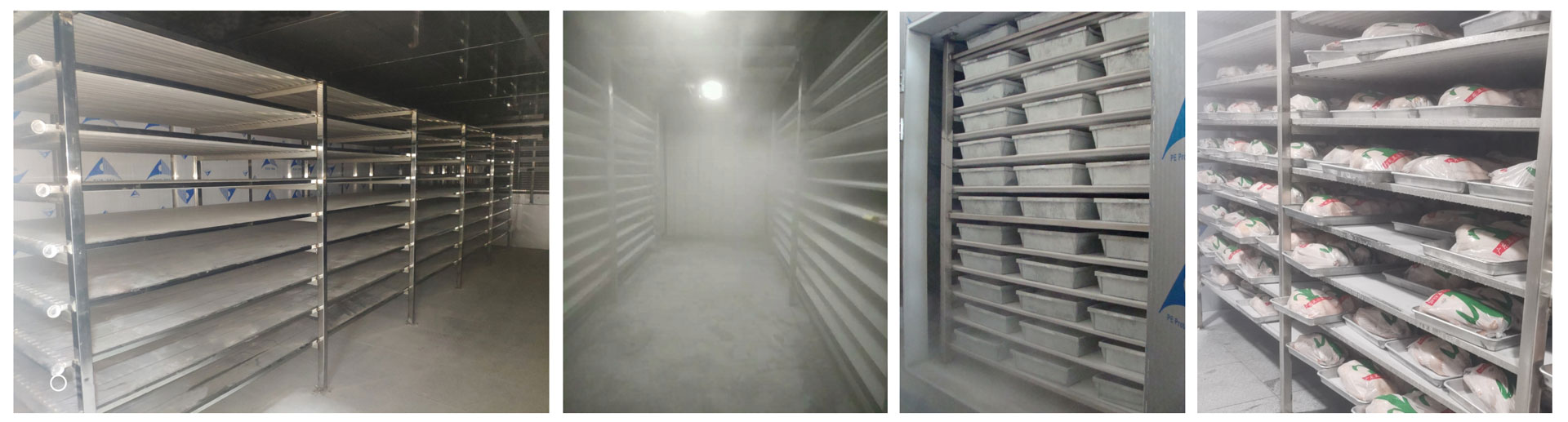

Applications of Aluminum Cold Plates - Contact Plate Freezers

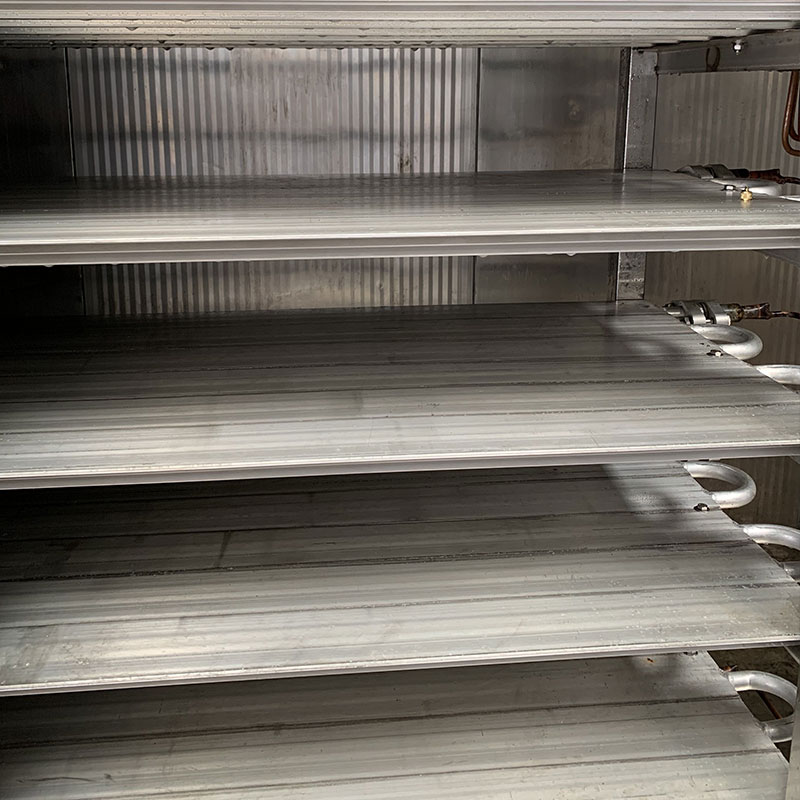

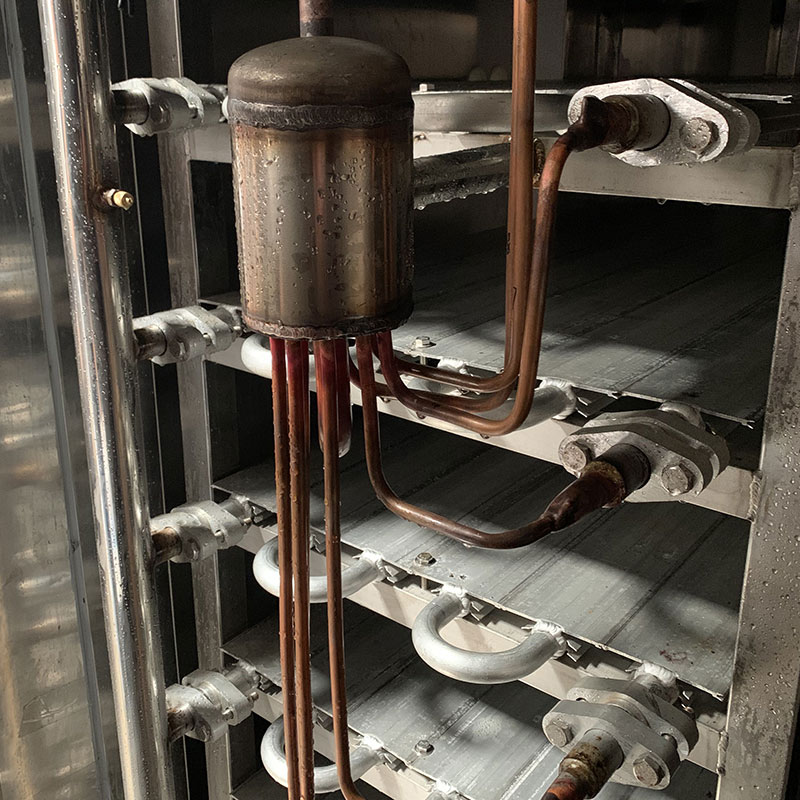

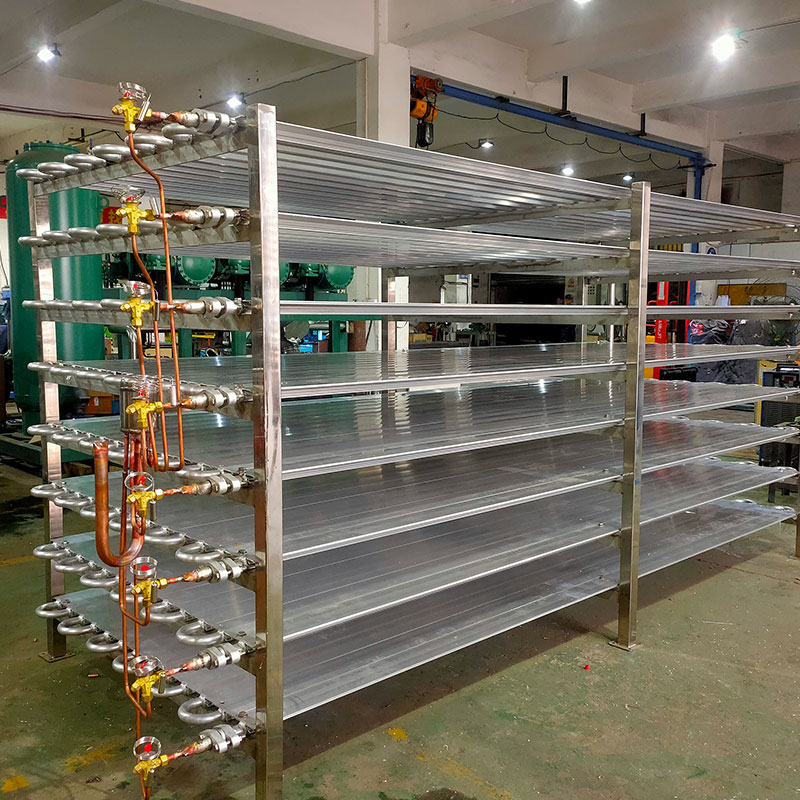

Introducing Cold Plates - Core Component of Contact Plate Freezers

(1) Material of Cold Plates:

Cold plates are commonly made from materials with high thermal conductivity to facilitate efficient heat exchange. Aluminum is a popular choice due to its lightweight nature, excellent thermal conductivity, and corrosion resistance. This is why the cold plates are generally refered to as aluminum cold plates.

(2) Main Function of Aluminum Cold Plates:

The primary function of an aluminum cold plate in a contact plate freezer is to absorb heat from the product being frozen. When the product comes into direct contact with the cold plate, heat is rapidly transferred from the product to the cold plate, causing the liquid content to freeze. This direct contact ensures a faster and more uniform freezing process compared to air-based methods.

(3) Features of Aluminum Cold Plates:

• Efficiency: Aluminum cold plates offer high heat transfer efficiency, enabling quick and uniform freezing.
• Direct Contact: The direct contact with the product allows for more effective heat removal.
• Compact Design: Aluminum cold plates are often designed to be compact, making them suitable for use in various freezing applications.

(4) Manufacturing Process:

• Material Selection: Choose a material with the desired thermal conductivity and other relevant properties.
• Plate Formation: Shape the cold plate into the required dimensions, often a flat surface for direct contact with the product.
• Finishing: Treat the surface to ensure it is smooth and suitable for contact with food products.
• Integration: Incorporate the cold plate into the overall design of the contact plate freezer, ensuring proper alignment and connection for efficient heat transfer.
