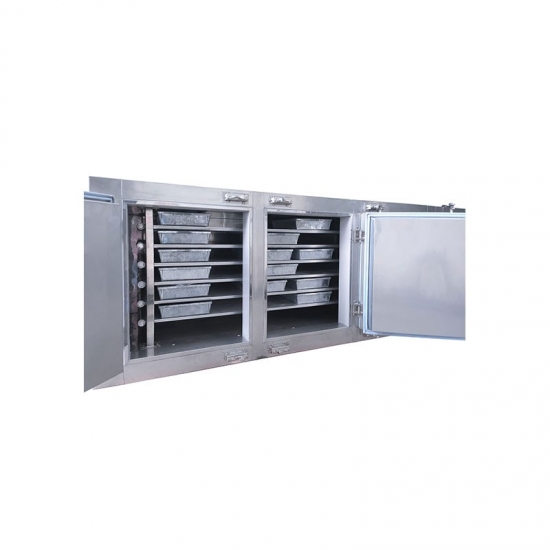

Introducing the SPEEDCRYO 250KG Contact Cold Plate Freezer, a compact and efficient freezing marvel that packs a punch. Designed with a space-saving footprint, this freezer combines a reliable Refcomp compressor unit with a clever layout, offering a generous 250kg freezing capacity in just 4-6 hours. The cold plate boasts a smart 6-layer design, featuring sizeable 2000x900mm plates, maximizing storage while maintaining a compact form. With each layer providing a spacious 150mm gap, accommodating four 600x400x80mm trays, the freezer ensures a total tray capacity of 24 trays per cycle. Experience unparalleled efficiency and storage convenience with SPEEDCRYO, where size meets substance for your freezing needs.
Brand:
SPEEDCRYOPayment:
T/T, 50% deposit, balance before deliveryProduct Origin:
Guangzhou, ChinaDimensions (mm):
3900x1250x1600Capacity:
250kg/4-6hCompressor Unit:
Refcomp, SBC4-120ERefrigerant:
R507Cooling System:
Water coolingAluminum Plate Size:
2000x900mmLayers of Aluminum Plate:
6 layersPower:
13.7KWWorking Temperature:
-40 degrees CelsiusCooling Tower:
15TCondensing Temperature:
40 degrees CelciusInsulation Layer:
150mmMaterial:
SUS304 stainless steelQuality Warranty:
12 monthsService Language:
English, Chinese
If you are looking for a contact cold plate freezer that can freeze your products quickly and efficiently, you may want to consider the SPEEDCRYO 250KG cold plate freezer. This freezer is designed to freeze up to 250kg of products in 4-6 hours, using a powerful refrigeration system and contact plates that transfer cold directly to the products.

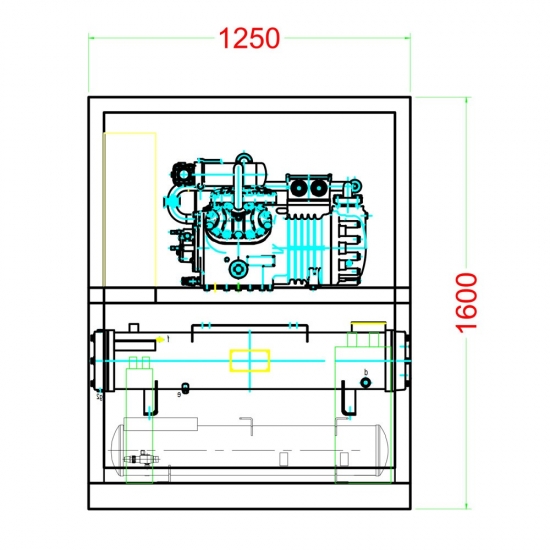

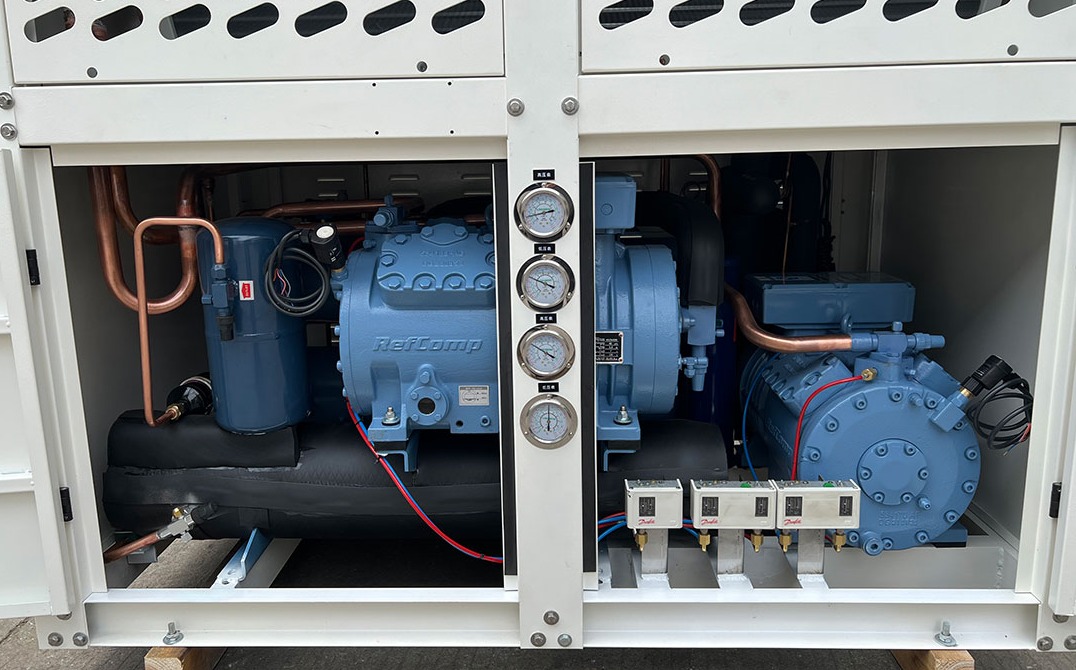

The refrigeration system of the SPEEDCRYO 250KG cold plate freezer is composed of a Refcomp compressor, a water cooling system, a cooling fan, a cooling tower, and a circulating water pump. The compressor has a cooling capacity of 12.3KW and a running power of 10.7KW, using R507 refrigerant. The voltage is 380v/50hz/3p, which is suitable for most industrial applications. SPEEDCRYO's 250KG cold plate freezer temperature reaches -40℃, which ensures fast and thorough freezing of the products. The refrigeration unit size is 1250x650x1600mm, which is compact and easy to install.

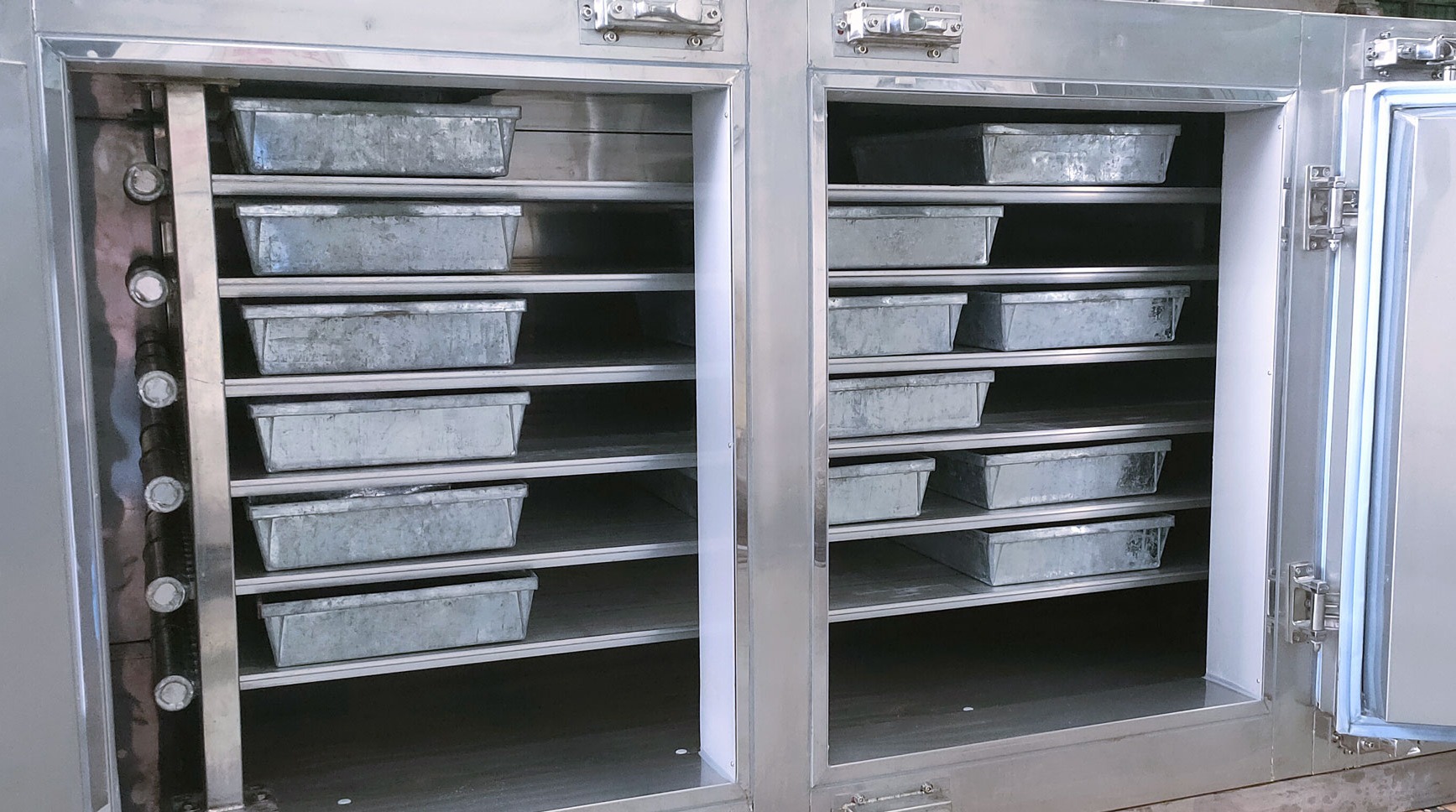

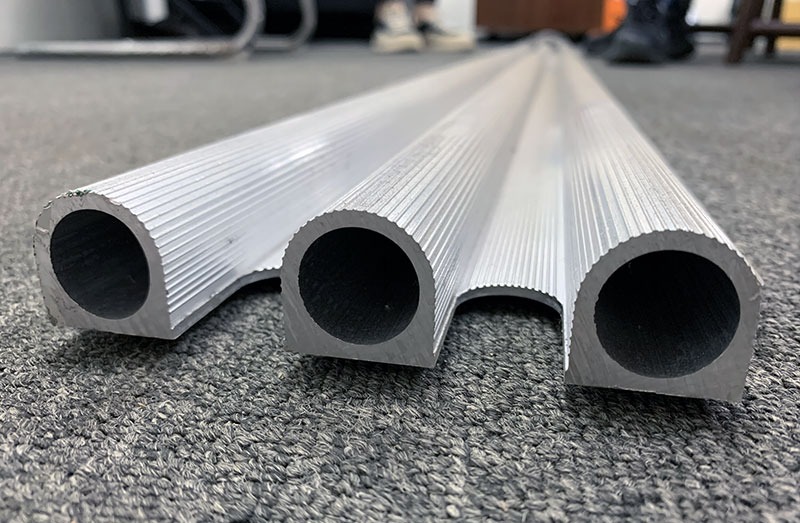

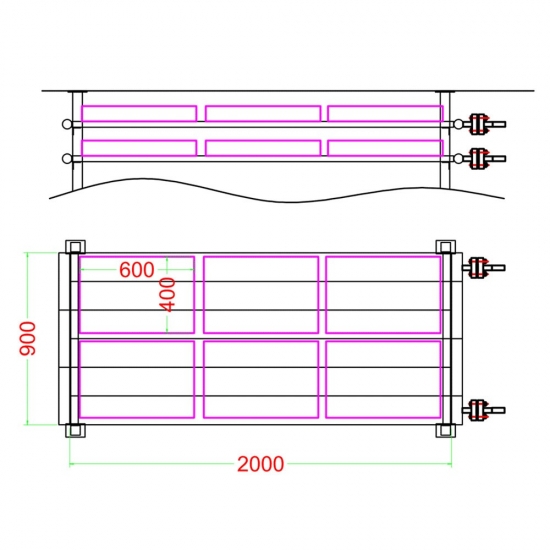

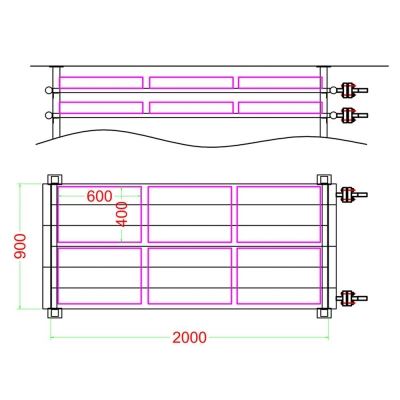

The contact plates are the key components of the cold plate freezer, as they are in direct contact with the products and transfer cold to them. The SPEEDCRYO 250KG cold plate freezer has six layers of contact plates, each with a size of 2000x900mm and a space of 150mm between them. The plates are made of aluminum evaporator plate DK1503, which has high thermal conductivity and durability. The plates can accommodate 24 trays per cycle, each with a size of 600x400x80mm and a weight of 10kg. The trays can be loaded with various types of products, such as meat, seafood, fruits, vegetables, etc.

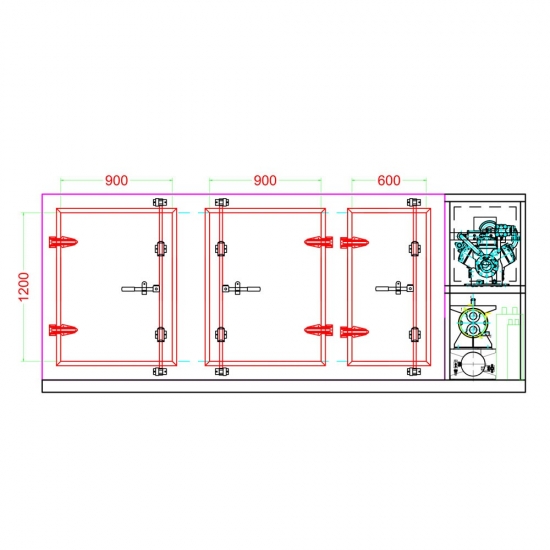

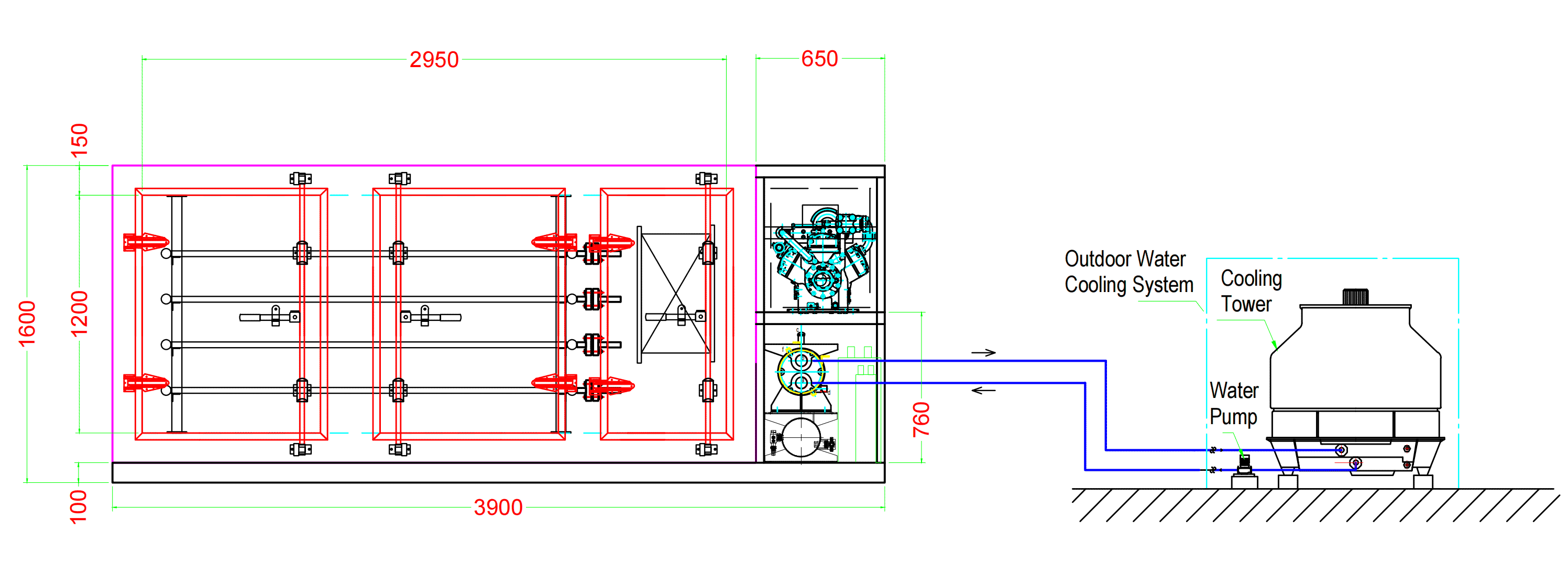

The PU panels are the outer shell of the cold plate freezer, which provide insulation and protection for the freezer. The SPEEDCRYO 250KG cold plate freezer has PU panels with a thickness of 150mm and a material of 304 double-sided stainless steel. The panels have excellent thermal insulation and corrosion resistance properties, which can prolong the service life of the freezer. The overall dimensions of the freezer are 3900x1250x1600mm (including a base with a 100mm extension), which is suitable for most spaces. The freezer has two doors and one small maintenance door, which allow easy access and operation.
| (1) Specifications of Refrigeration System | |
| Freezing capacity | 250kg per 4 to 6 hours |
| Compressor | Refcomp, SBC4-120E |
| Cooling capacity | 12.3KW |
| Compressor running power | 10.7KW |
| Compressor running current | 19.25A |
| Refrigerant | R507 |
| Voltage | 380v/50hz/3p |
| Cooling system | Water cooling |
| Input material temperature | 8 degrees Celcius |
| Center temperature | -18 degrees Celcius |
| Freezing temperature | -40 degrees Celcius |
| Ambient temperature | 30 degrees Celcius |
| Condensing temperature | 40 degrees Celcius |
| Cooling fan | 7# (1.5KW) x 1 set |
| Cooling tower | 15T |
| Circulating water pump | 1.5KW |
| Refrigeration unit size | 1250x650x1600mm |
| (2) Specifications of Contact Plates | |
| Number of Layer | 6 layers |
| Plate size | 2000x900mm |
| Space between each layer | 150mm |
| Plate material | Aluminum evaporator plate DK1503 |
| Size of tray | 600x400x80mm |
| Weight of each tray | 10kg |
| Trays loaded per layer | 4 trays loaded per layer |
| Total tray capacity | 24 trays loaded per cycle |
| (3) Specifications of PU Panels | |
| Overall length | 3900mm |
| Overall width | 1250mm |
| Overall height | 1600mm (including a base with a 100mm extension) |
| PU panel thickness | 150mm |
| PU panel material | 304 double-sided stainless steel |
| Number of doors | 2 doors +1 small maintenance door |
Ready to elevate your freezing capabilities and streamline your operations? Choose SPEEDCRYO for cutting-edge cold plate freezers that offer unmatched efficiency and customization. As an experienced cold plate freezer manufacturer and supplier, SPEEDCRYO stands at the forefront of providing tailored freezing solutions to meet diverse needs. Whether you need a compact 250KG unit or a robust 2500KG solution, we've got you covered. Our commitment to flexibility means you can tailor the freezing capacity, dimensions, and compressor size to fit your unique requirements. Don't settle for one-size-fits-all solutions; embrace the power of customization with SPEEDCRYO. Contact us now to discuss your specific needs and take the first step towards a more efficient and tailored freezing solution. Your success starts with the right freezer – choose SPEEDCRYO today!
