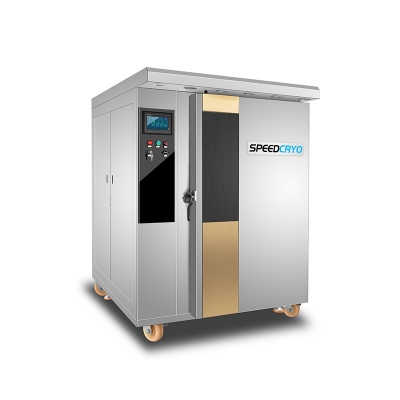

The Contact Plate Freezer is an industrial freezing equipment that utilizes a unique combination of aluminum plates and cold air to rapidly freeze food, preserving its nutritional value, taste, and texture. This innovative design ensures efficient heat transfer, minimizing food drying and achieving superior freezing quality. With a freezing capacity of up to 1000kg per batch in just 4-6 hours, the Contact Plate Freezer streamlines the freezing process, making it an ideal solution for various food processing applications.
Brand:
SPEEDCRYODimensions (mm):
4800x1700x2300Capacity:
1000KG/4-6HCompressor Unit:
Refcomp, SRC-S-113ZL (30HP)Refrigerant:
R404ACooling System:
Water coolingAluminum Plate Size:
2300x1200mmLayers of Aluminum Plate:
10 layersPower:
30.5KWWorking Temperature:
-40 degrees CelsiusCooling Tower:
30TCondensing Temperature:
40 degrees CelciusInsulation Layer:
150mmMaterial:
SUS304 stainless steelQuality Warranty:
12 monthsService Language:
English, Chinese
Exploring an effective freezing solution for your business? Consider the cold plate freezer, also referred to as the contact plate freezer. This industrial freezer excels in both speed and quality, employing a combination of air blowing and aluminum plates to rapidly freeze food items. The refrigerant-cooled aluminum plates play a crucial role in swiftly lowering the food temperature, complemented by a stream of cold air for an extra cooling boost. This synergistic approach ensures a quick freezing process, minimizing the risk of food drying while maintaining exceptional freezing quality.
In the ever-evolving landscape of freezing technology, the semi-contact plate freezer has emerged as a noteworthy solution with broad applicability across industries. This innovative freezing method seamlessly integrates the efficiency of plate freezing with the advantages of a more compact size, precise temperature control, and a budget-friendly pricing structure. Whether your preference is for a cold plate freezer or a contact plate freezer, this technology promises a compelling blend of performance and cost-effectiveness for your business needs.

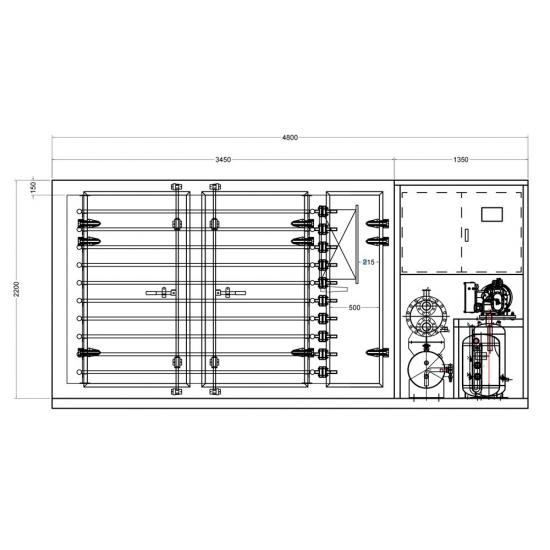

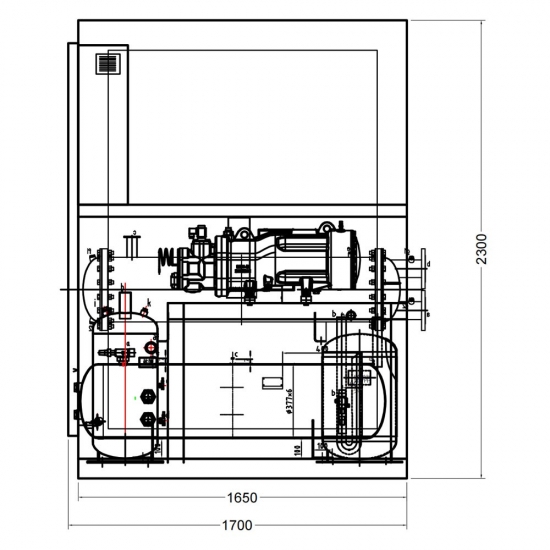

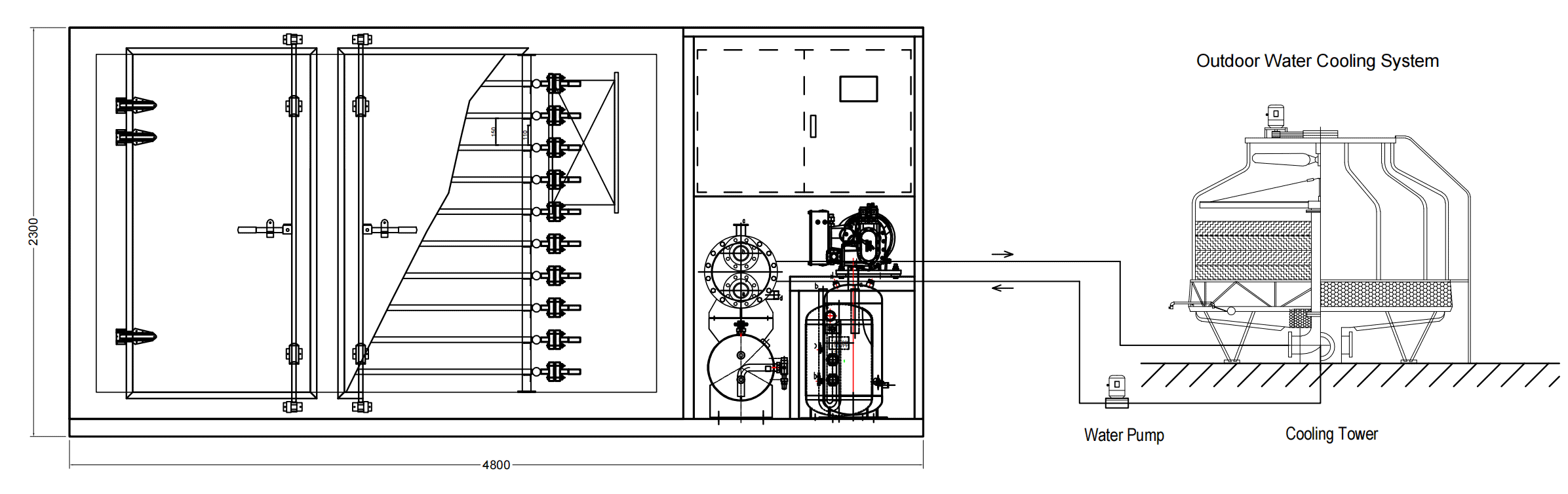

Drawing of 1000KG Semi Contact Plate Freezer:
Freezing capacity | 1000kg/4-6h/batch |
Compressor | Refcomp, SRC-S-113ZL (30HP) |
Cooling capacity | 30KW |
Compressor running power | 26.5KW |
Compressor running current | 45A |
Refrigerant | R507 |
Voltage | 380v/50hz/3p |
Cooling system | Water cooling |
Input material temperature | 8℃ |
Center temperature | -18℃ |
Freezing temperature | -40℃ |
Ambient temperature | 30℃ |
Condensing temperature | 40℃ |
Cooling fan | 7#x1, 1.5KW |
Cooling tower | 30T |
Circulating water pump | 2.5KW |
Refrigeration unit size | 1350x1700x2300mm |
Number of Layer | 10 layers |
Plate size | 2300x1200mm |
Space between each layer | 150mm |
Plate material | Aluminum plate DK1503 |
Size of tray | 600x400x80mm |
Weight of each tray | 10kg |
Trays loaded per layer | 10 trays loaded per layer |
Total tray capacity | 100 trays loaded per cycle |
Overall length | 4800mm |
Overall width | 1700mm |
Overall height | 2300mm (including a base with a 100mm extension) |
PU panel thickness | 150mm |
Pu panel material | 304 double-sided stainless steel |
Number of doors | 2 doors +1 small maintenance door |
Freezer Overall Dimension: 4800x1700x2300 (mm, LxWxH)

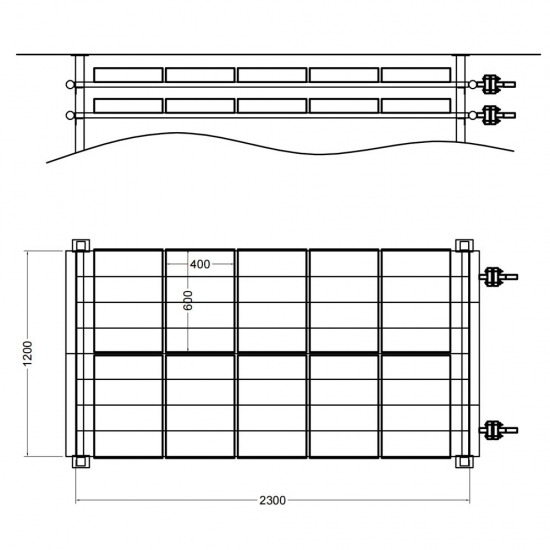

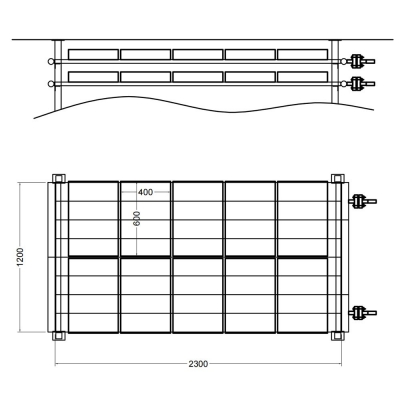

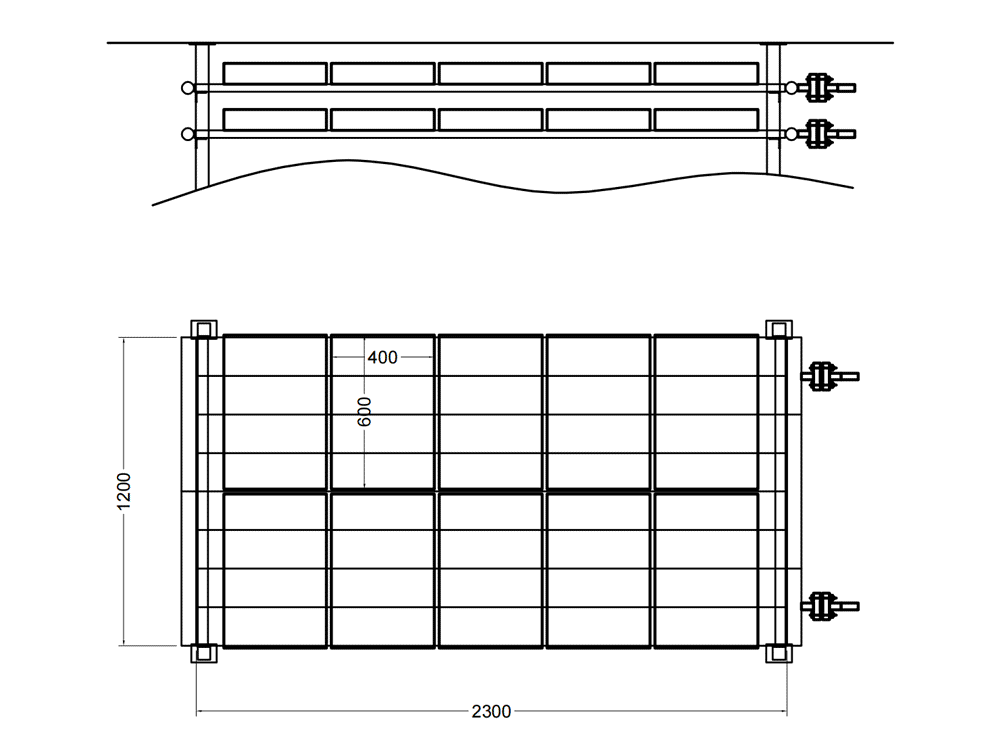

Aluminum Plate Dimensions: 2300x1200 (mm, LxW)
Total Layers of Aluminum Plate: 10 layers
Loading Quantity: 100 pieces of 400x600mm trays per batch

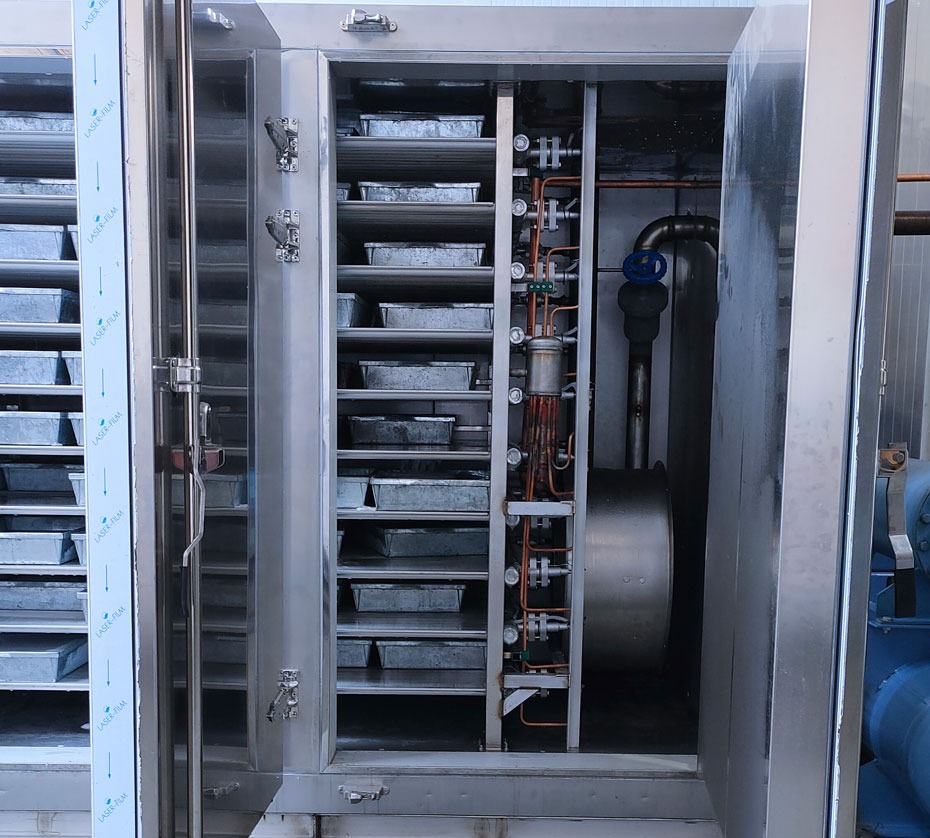

As shown in the figure, the contact plate freezer consists of three core components: the compressor unit, the cold air fan, and the aluminum plate. The top of the aluminum plate is flat, and the bottom is an aluminum tube structure. The design takes into account both air convection and cold radiation, making it more efficient than a single cold air blower.

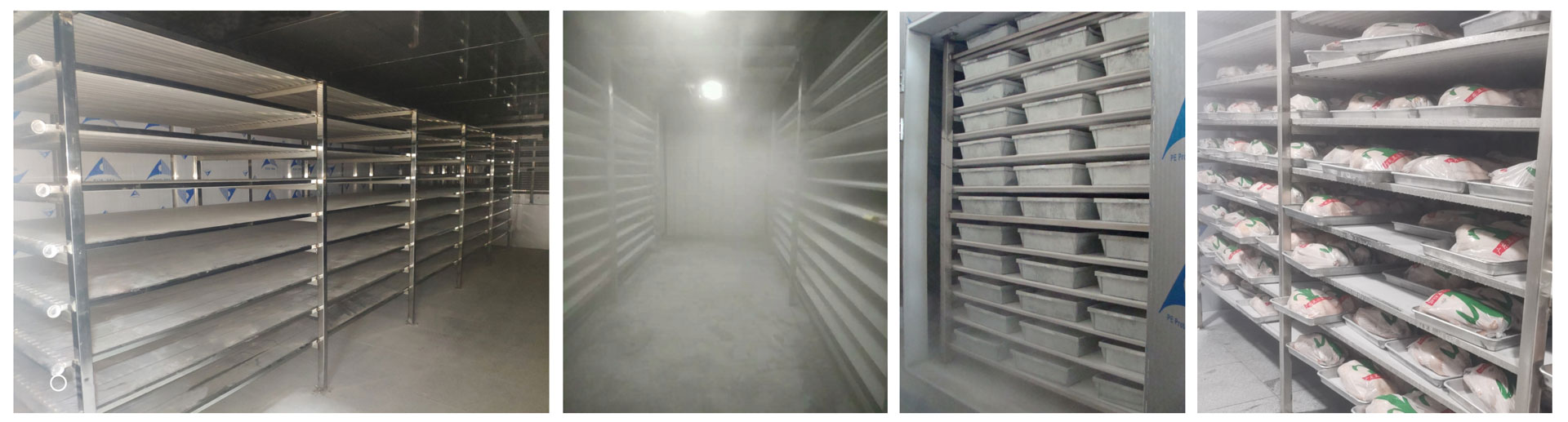

It is mainly used in onshore and offshore shelf plate quick-freezing warehouses. The aluminum plate is cooled by a refrigerant, which in turn cools the food. Cold air is blown over the food to further reduce its temperature. The combination of these two methods results in a rapid freezing process that minimizes food drying consumption and ensures good freezing quality.
Fast Freezing Speed: Contact plate freezers can freeze food much faster than traditional air blast freezers. This is because the aluminum plates transfer heat to the food much more efficiently than air.
Minimal Food Drying: Contact plate freezers minimize food drying because the food is in direct contact with the cold aluminum plates. This is in contrast to air blast freezers, which can cause significant food drying, especially when the food is not properly packaged.
Better Freezing Quality: Contact plate freezers produce frozen food with good texture, flavor, and nutritional value. This is because the rapid freezing process prevents the formation of large ice crystals, which can damage the food's cell structure.

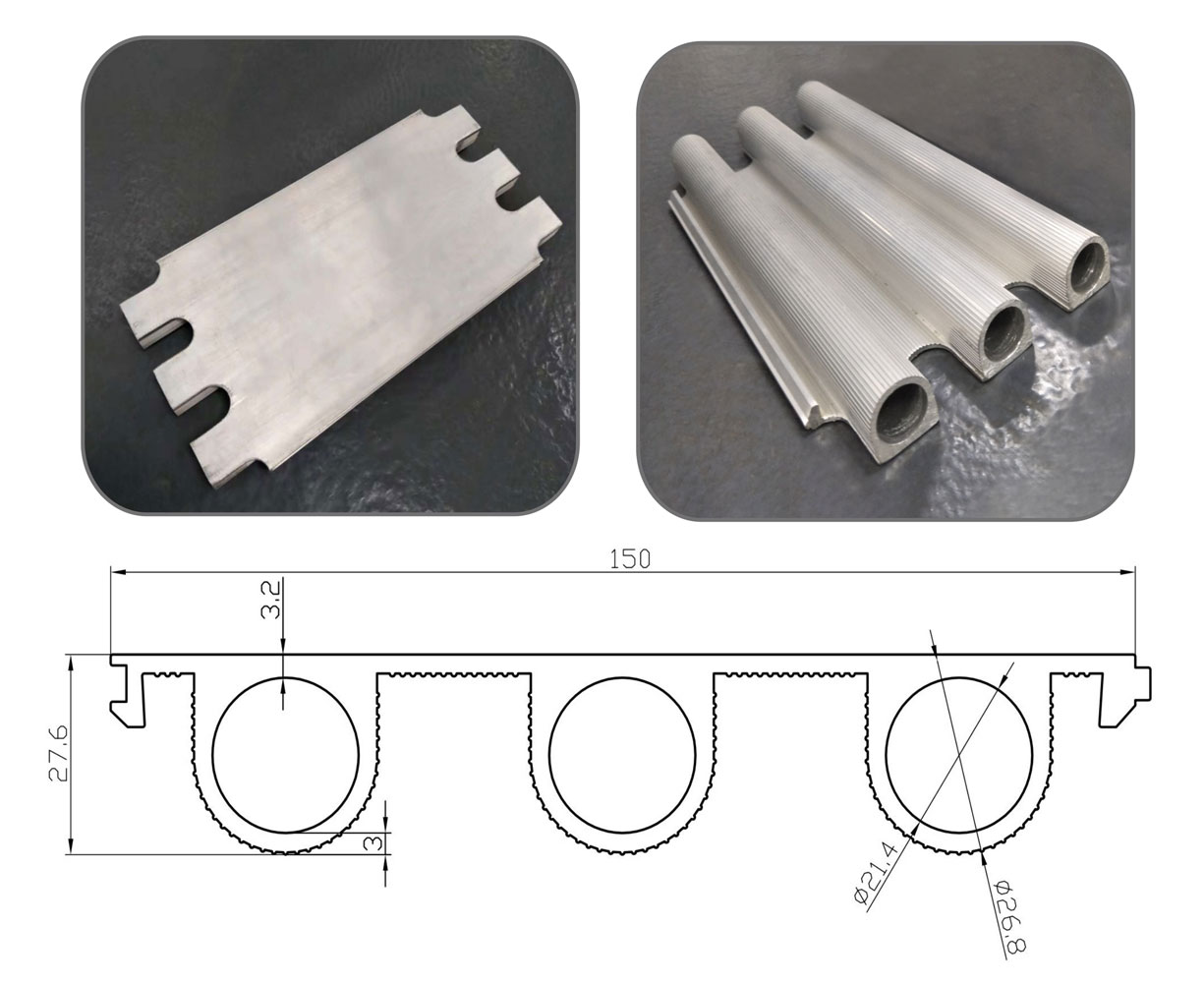

SPEEDCRYO's contact plate freezer is constructed with high-quality aluminum plates, featuring an overall plate height of 27.6mm, a plate layer thickness of 3.2mm, an internal pipe diameter of 21.4mm, and an external pipe diameter of 26.8mm.
The top of the aluminum plate is flat, and the bottom is an aluminum tube structure. The design takes into account both air convection and cold radiation, making it more efficient than a single cold air blower. It is suitable to be used in onshore and offshore shelf plate quick-freezing equipment. The aluminum plate is cooled by a refrigerant, which in turn cools the food. Cold air is blown over the food to further reduce its temperature. The combination of these two methods results in a rapid freezing process that minimizes food drying consumption and ensures good freezing quality.
SPEEDCRYO’s contact plate freezer temperature reaches -40 degrees Celsius, uses the Refcomp SRC-S-113Z (30HP) refrigeration unit, which has a cooling capacity of 30KW. This ensures that your food is frozen at the optimal contact plate freezer temperature for maximum quality and freshness. Our contact plate freezer also comes with a 30T water-cooled cooling tower, which helps to reduce the energy consumption and noise level of the system. Moreover, our contact plate freezer has 10 layers of 2300x1200mm high-efficiency aluminum plates, which can accommodate up to 1000 kg of food per batch. You can freeze your food in just 4 to 6 hours, saving you time and money. Contact us today to find out more about our contact plate freezer and how it can benefit your business.
