Commercial Flake Ice Machine

SPEEDCRYO offers commercial flake ice machines ranging from 300KG/24H to 2500KG/24H. Our commercial flake ice machine starts producing ice within 3 minutes of being turned on and can continuously produce ice. The equipment is easy to operate, with PLC fully automated operation. Once the ice storage is full, the machine automatically stops ice production without the need for manual intervention, ensuring a high level of automation. The produced flake ice is dry and non-adhesive, with a thickness ranging from 1.5 to 2.5mm.

  • Brand:

    SPEEDCRYO
  • Product Name:

    Commercial Flake Ice Machine
  • Ice Production Capacity:

    300-2500KG/24H
  • Cooling Capacity:

    1.95-16.25 KW
  • Input Power:

    1.2-9.7 KW
  • Refrigerant:

    R404A / R507
  • Condensing Method:

    Air-cooled
  • Ice Storage Capacity:

    150/350/550KG
  • Voltage:

    380/400V 50/60Hz 3P
  • Ice Type:

    Flake ice 1.5-2.5mm thick

What Is Flake Ice Machine?



Flake ice machines constitute a specific category within the realm of ice makers, distinguished by their capacity to produce thin, crisp flakes. Categorized into freshwater and seawater variants based on the water source, these machines find predominant application in industrial ice production.



The generated flake ice exhibits a distinct character, presenting itself in thin, dry, and loosely packed layers with a white hue. Thickness ranges from 1.0 to 2.5 millimeters, featuring an irregular surface shape and diameters ranging approximately from 12 to 45 millimeters. Unlike other forms of ice, flake ice lacks sharp edges, mitigating the risk of causing injury to frozen objects.



The unique morphology of flake ice allows it to infiltrate the gaps between cooled objects, effectively reducing heat exchange, maintaining ice temperature, and concurrently delivering excellent moisture retention capabilities. This characteristic makes flake ice particularly advantageous in various applications within the cooling and preservation domains.



SPEEDCRYO - Manufacturer of Commercial Flake Ice Machine



SPEEDCRYO offers a range of commercial flake ice machines with capacities ranging from 300kg/24h to 2500kg/24h. The machine starts producing ice within three minutes of operation and maintains a continuous ice output. With user-friendly operation, the system is fully automated using a PLC, ensuring a high level of automation. Once the ice storage is full, the machine automatically stops ice production without the need for manual intervention.



The produced flake ice is characterized by its dryness and non-adhesive properties, providing a convenient and versatile solution for various commercial applications. The thickness of the flake ice ranges from 1.5 to 2.5mm, ensuring uniformity and suitability for different purposes. This design is ideal for industries such as hospitality and food processing, as well as specific applications like seafood displays.



SPEEDCRYO's commercial flake ice machine stands out for its efficiency, intelligence, and reliability, making it an ideal choice for businesses seeking a high-performance solution for their ice production needs.

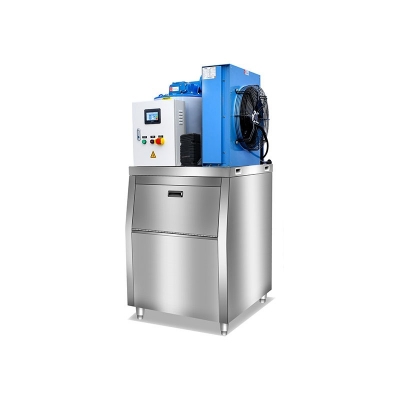

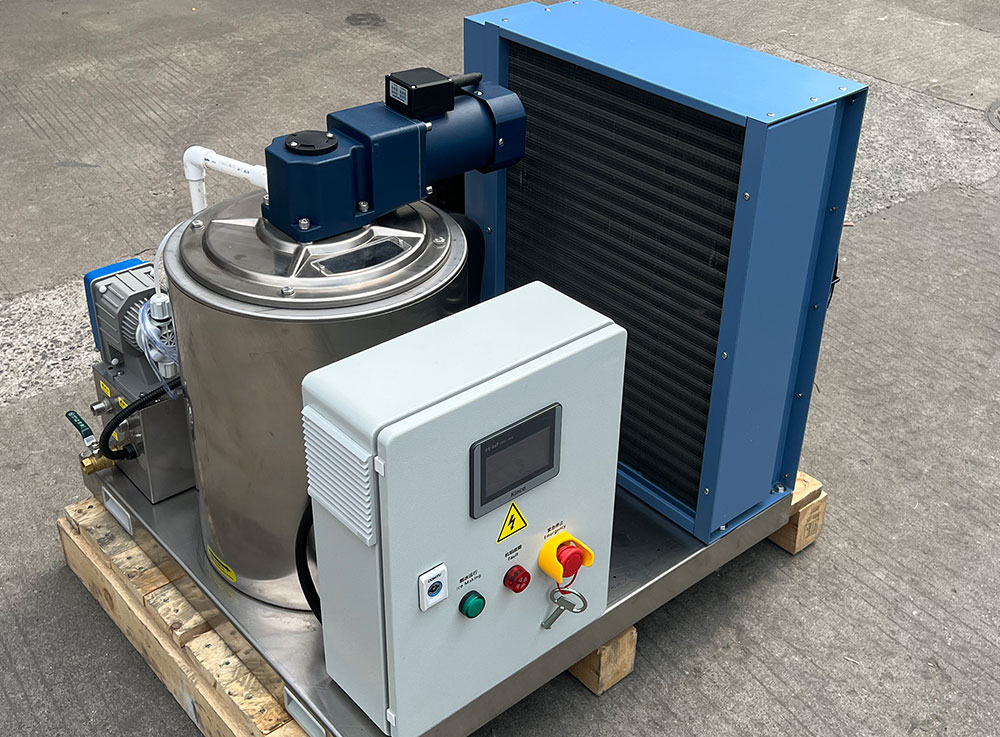

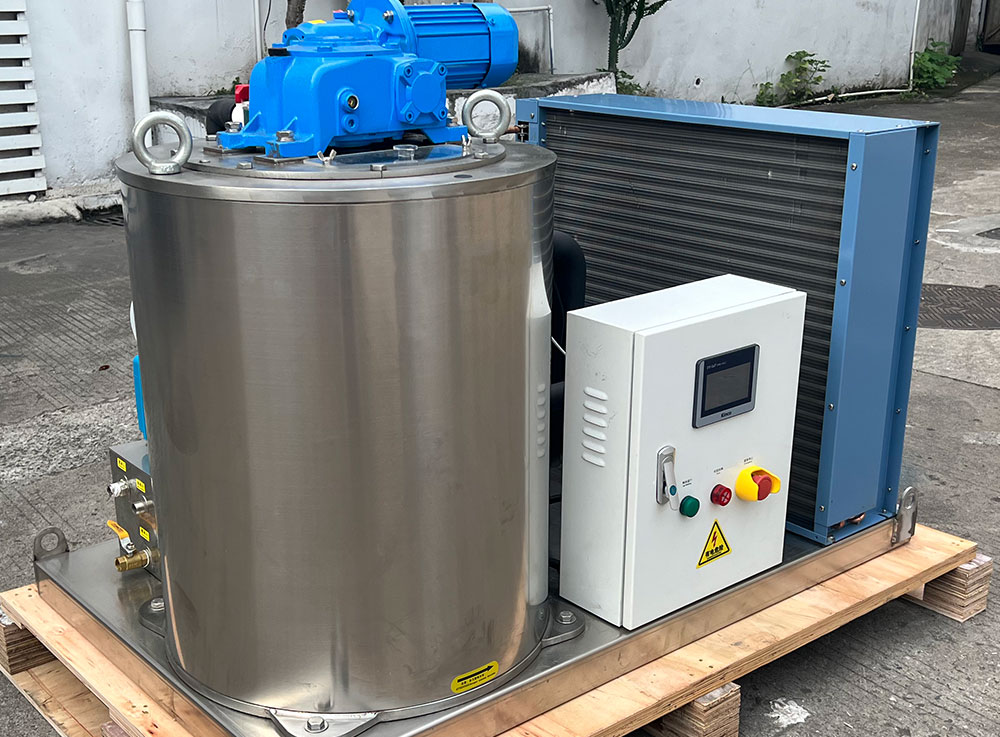

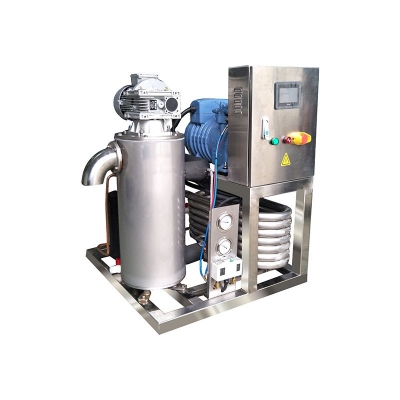

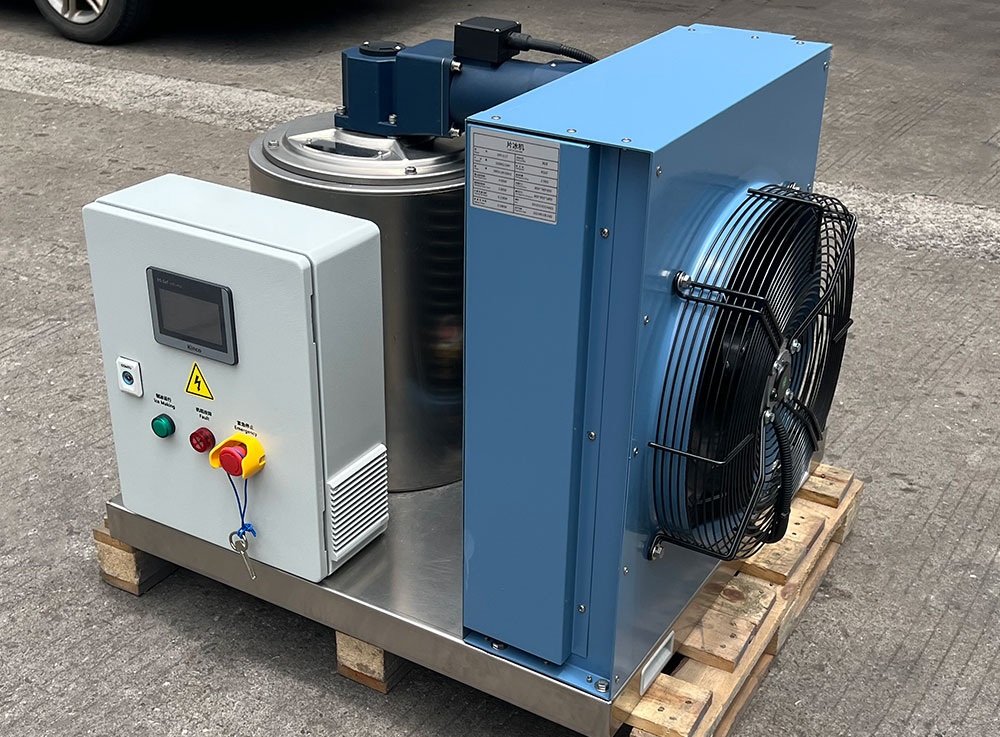

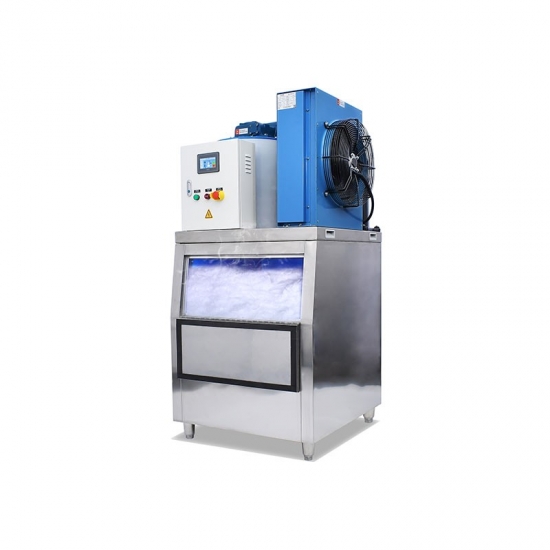

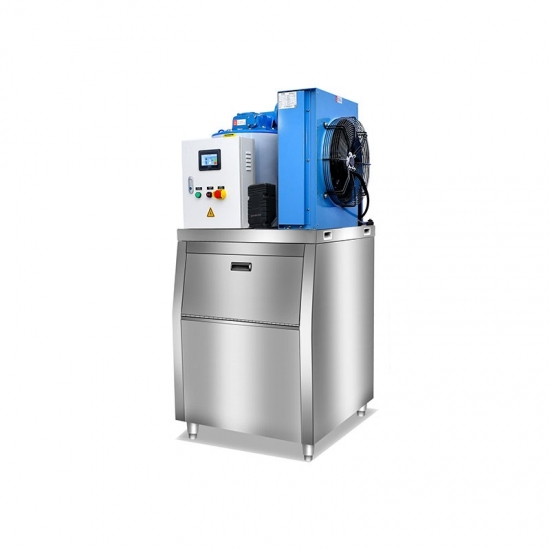

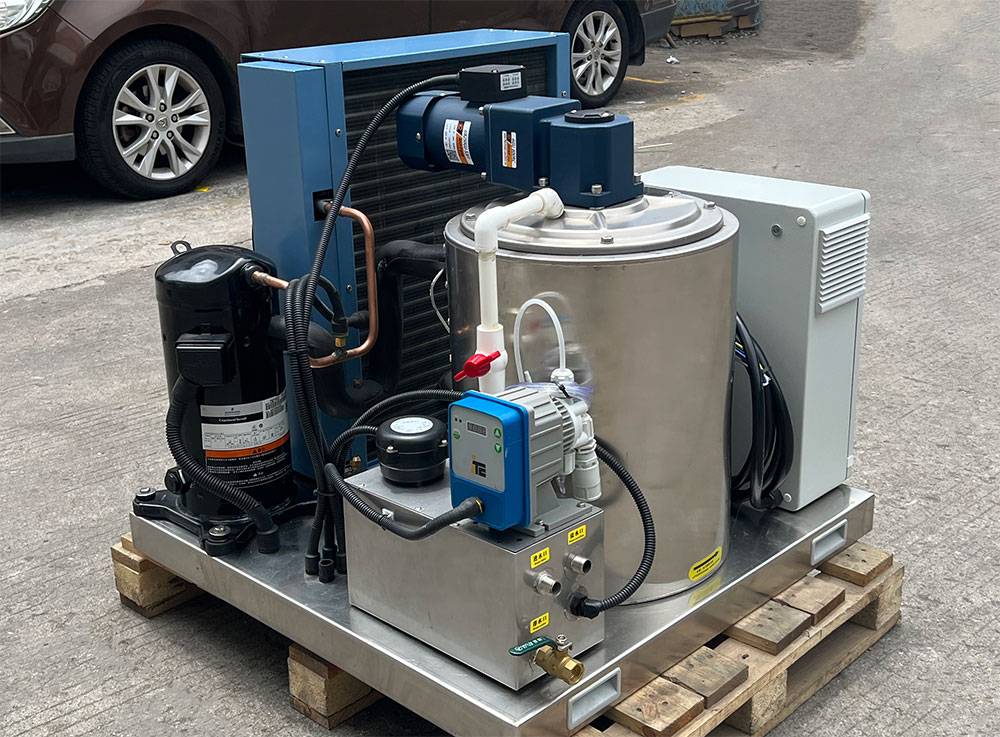

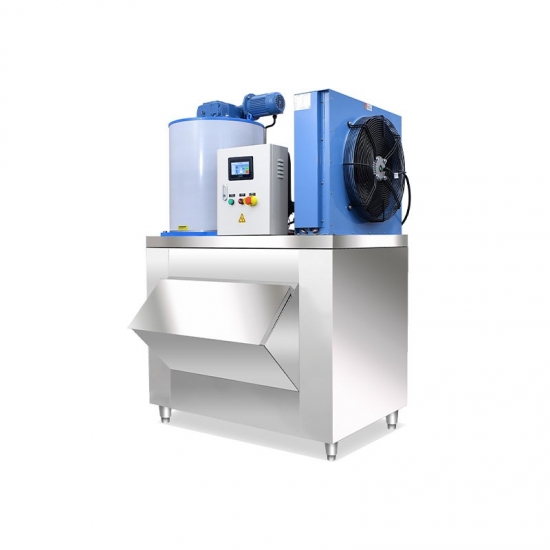

  • Photo of Commercial Flake Ice Machine
  • Photo of Commercial Flake Ice Machine
  • Photo of Commercial Flake Ice Machine
  • Photo of Commercial Flake Ice Machine





Model: 0.3T 0.5T 1.0T 1.5T 2.0T 2.5T
External Dimensions: 810x830x1750 mm 810x830x1850 mm 1280x1100x1960 mm 1280x1100x2020 mm 1500x1500x2400 mm 1500x1500x2500 mm
Ice Productivity: 300KG/24H 500KG/24H 1000KG/24H 1500KG/24H 2000KG/24H 2500KG/24H
Cooling Capacity: 1.95 KW 3.25 KW 6.5 KW 9.75 KW 13 KW 16.25 KW
Input Power: 1.2 KW 2.5 KW 4.8 KW 7.3 KW 8.5 KW 9.7 KW
Voltage: 380/400v, 50/60Hz, 3P 380/400v, 50/60Hz, 3P 380/400v, 50/60Hz, 3P 380/400v, 50/60Hz, 3P 380/400v, 50/60Hz, 3P 380/400v, 50/60Hz, 3P
Refrigerant: R404A / R507 R404A / R507 R404A / R507 R404A / R507 R404A / R507 R404A / R507
Condensing Method: Air cooled Air cooled Air cooled Air cooled Air cooled Air cooled
Ice Storage Capacity: 150 kg 150 kg 350 kg 350 kg 550 kg 550 kg





Features of SPEEDCRYO Commercial Flake Ice Machine



The SPEEDCRYO flake ice machine series offers a comprehensive range, including freshwater, seawater, and self-contained refrigeration types. Users also have the option to customize their refrigeration sources and choose models with built-in ice storage. With daily ice production ranging from 400 kg/24h to 50,000 kg/24h, users can select the appropriate machine based on their specific operational needs and water quality. Noteworthy advantages of SPEEDCRYO flake ice machines include compact footprint, simple structure, easy installation, small volume, and low noise, enhancing practicality in diverse settings.



The SPEEDCRYO flake ice machine employs a PLC programmable control system, ensuring stable and controllable performance. The entire machine relies on the PLC system for comprehensive control, promoting stable and reliable operation. Users can implement energy-saving and fully automatic control by configuring the automatic start-up and shut-down times based on power consumption.



Operating the SPEEDCRYO flake ice machine is straightforward, maintaining high hygiene standards through its fully automated control system. Operators need only press a switch to initiate operations. The evaporator is constructed using premium 304 stainless steel or carbon steel with efficient heat conduction and electroplated hard chrome, ensuring exceptional corrosion resistance and guaranteeing the cleanliness of the ice produced.



The SPEEDCRYO flake ice machine is equipped with a sophisticated fault protection system, including high and low-pressure safeguards, water shortage detection, position limits, and overload protection. These features significantly enhance equipment safety and stability. Users have the option to power off the machine directly when ice production is unnecessary. The simple internal structure of the evaporator, combined with high component interchangeability, ensures reliable operation, easy maintenance, and straightforward upkeep.



The SPEEDCRYO Flake Ice Machine initiates ice production within 1 to 3 minutes upon startup, and is capable of continuous ice generation. It operates with a PLC fully automated system, automatically ceasing operation when the ice storage is full. The produced flake ice exhibits a dry and non-adherent surface, with a thickness ranging from 1.5 to 2.5 millimeters.

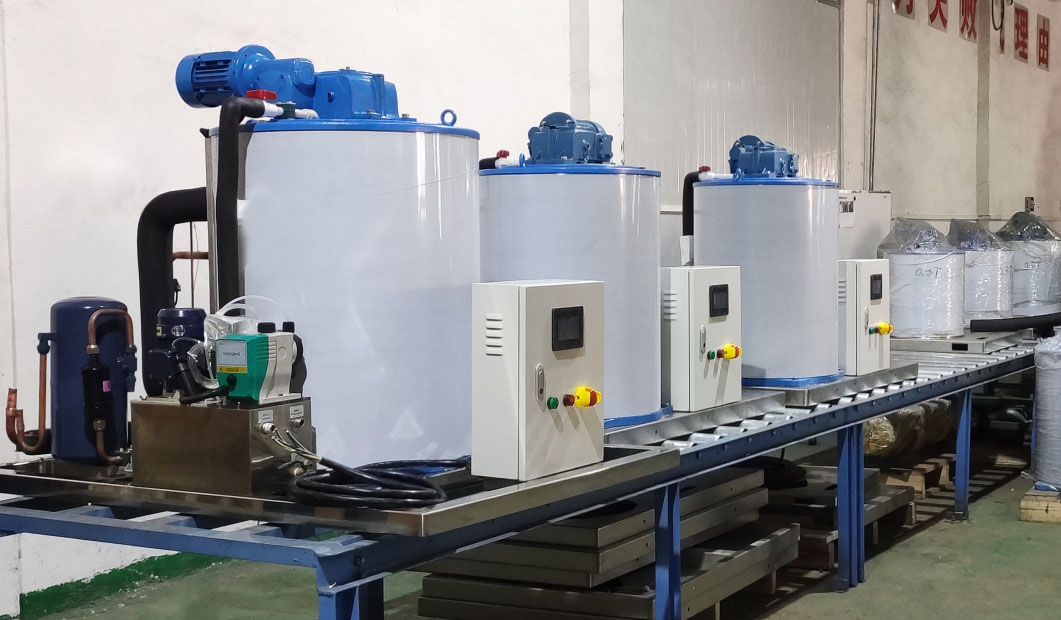

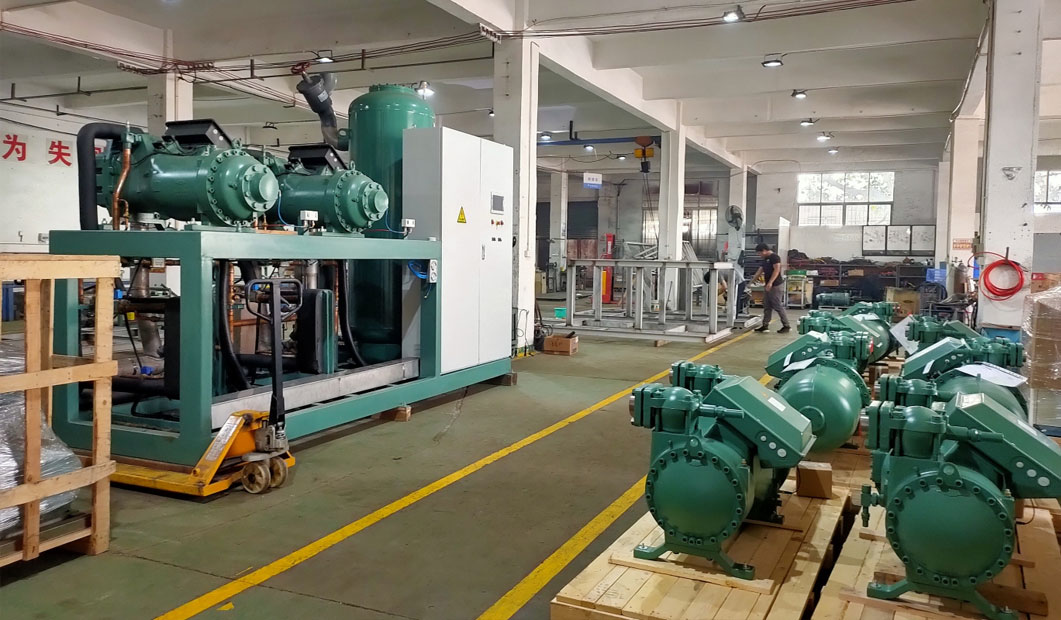

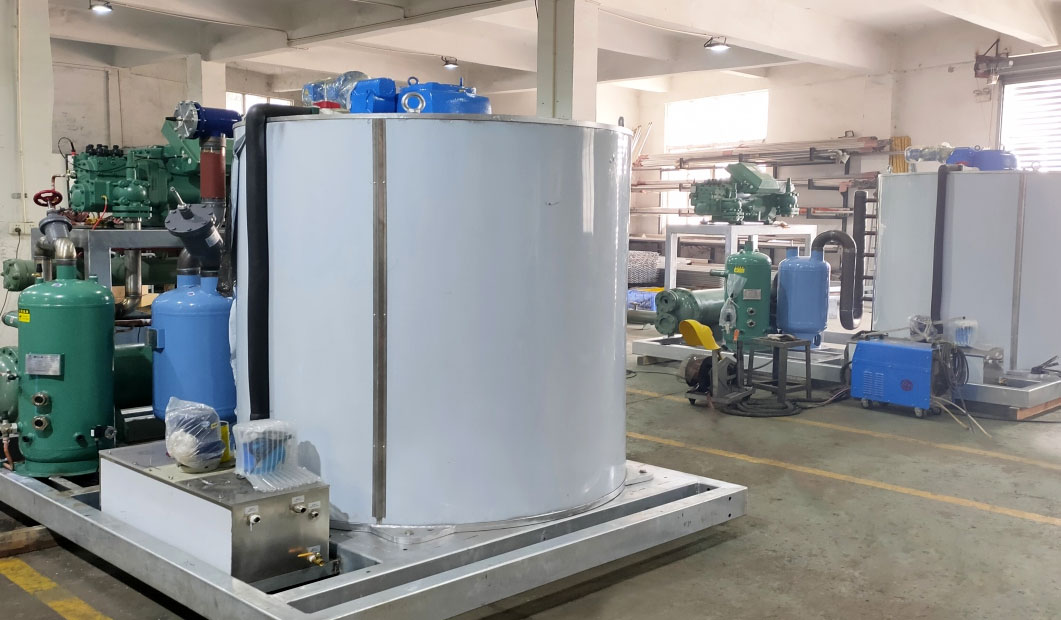

  • Factory of flake ice machine
    ISO9001 Certified Manufacturing Plant
  • Manufacturer of flake ice machine
    Products Exported to 20 Countries
  • Factory of flake ice machine
    China's National High-Tech Enterprise



SPEEDCRYO - Your Reliable Supplier of Ice Making Machines



SPEEDCRYO stands as a seasoned and professional manufacturer and supplier of flake ice machines, offering a comprehensive range that includes home flake ice machines, commercial flake ice machines, and industrial ice flake machines. With an extensive background in the industry, the company holds over 100 patents in cold chain technology, providing a wealth of cold chain solutions tailored to the needs of food enterprises.



Our diverse product lineup goes beyond flake ice machines, encompassing solutions such as air blast freezers, contact plate freezers, liquid nitrogen freezers, IQF machines, ice makers, and more. Spanning an expansive 100,000 square meters integrated food cold chain industrial park and a 35,000 square meters cold chain equipment manufacturing base, SPEEDCRYO ensures precision and excellence in every aspect of production.



Recognized as a Chinese "National High-Tech Enterprise" and awarded the title of "SRDI Enterprise" (Specialized, Refinement, Differential, Innovation), SPEEDCRYO’s products have found their way to over 20 international markets. Supported by a dedicated foreign trade team, we provide professional and round-the-clock after-sales service to our global clientele.



Choosing SPEEDCRYO means opting for innovation, reliability, and professionalism in the world of flake ice machines. We invite you to experience a partnership committed to excellence, offering cutting-edge solutions and unparalleled support for your cold chain requirements. Join us at SPEEDCRYO , where your satisfaction and success are our top priorities.
